• Alpha and Omega Semiconductor, Inc.
• AO3424
• Single FETs, MOSFETs
• MOSFET N-CH 30V 3.8A SOT23-3L
•  AO3424 Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerAlpha and Omega Semiconductor, Inc.
• CategorySingle FETs, MOSFETs
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionN-Channel 30 V 3.8A (Ta) 1.4W (Ta) Surface Mount SOT-23-3

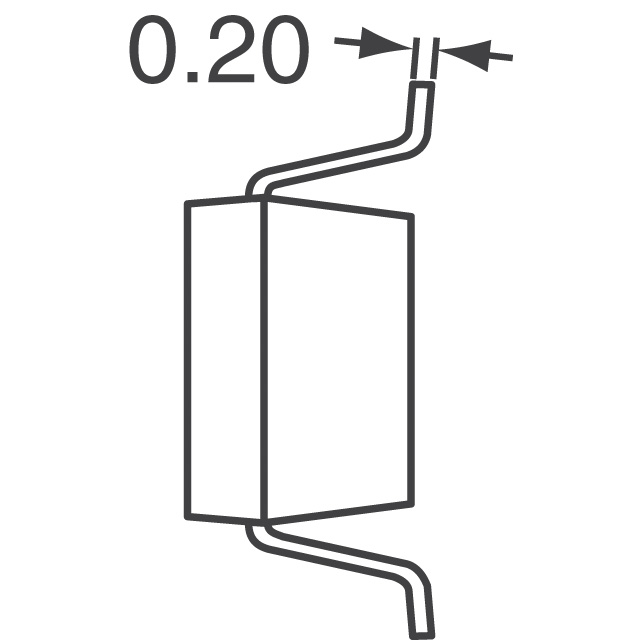

• Package / Case3-SMD, SOT-23-3 Variant
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C3.8A (Ta)
• Rds On (Max) @ Id, Vgs80mOhm @ 2A, 10V
• Power Dissipation (Max)1.4W (Ta)
• Vgs(th) (Max) @ Id1.8V @ 250μA
• Supplier Device PackageSOT-23-3
• Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
• Vgs (Max)±12V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs3.2 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds270 pF @ 15 V
