• Alpha and Omega Semiconductor, Inc.
• AOTS21115C
• Single FETs, MOSFETs

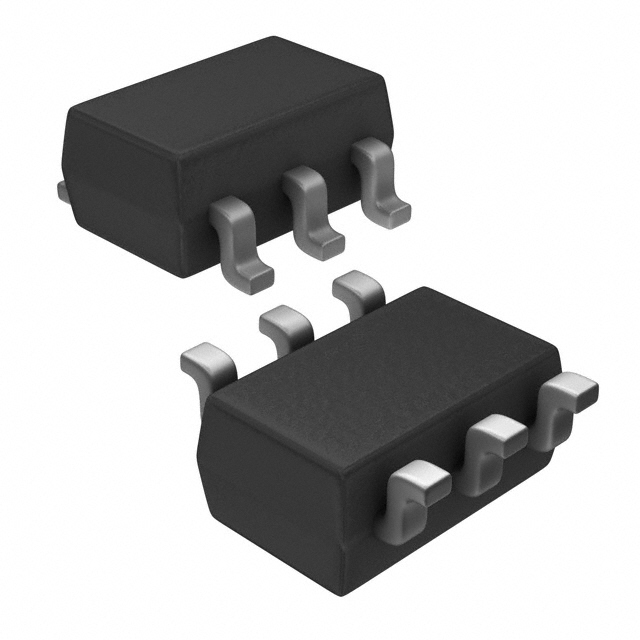

• MOSFET P-CH 20V 6.6A 6TSOP
•  AOTS21115C Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerAlpha and Omega Semiconductor, Inc.
• CategorySingle FETs, MOSFETs
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionP-Channel 20 V 6.6A (Ta) 2.5W (Ta) Surface Mount 6-TSOP
• Package / CaseSC-74, SOT-457
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeP-Channel
• Current - Continuous Drain (Id) @ 25°C6.6A (Ta)
• Rds On (Max) @ Id, Vgs40mOhm @ 6.6A, 4.5V
• Power Dissipation (Max)2.5W (Ta)
• Vgs(th) (Max) @ Id950mV @ 250μA
• Supplier Device Package6-TSOP
• Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
• Vgs (Max)±8V
• Drain to Source Voltage (Vdss)20 V
• Gate Charge (Qg) (Max) @ Vgs17 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds930 pF @ 10 V
