• Alpha and Omega Semiconductor, Inc.
• AOTS32334C
• Single FETs, MOSFETs

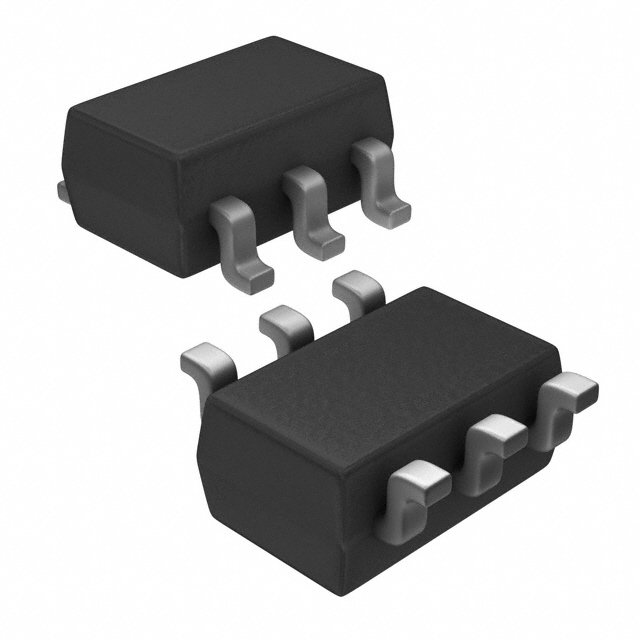

• MOSFET N-CH 30V 8A 6TSOP
•  AOTS32334C Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerAlpha and Omega Semiconductor, Inc.
• CategorySingle FETs, MOSFETs
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionN-Channel 30 V 8A (Ta) 2.5W (Ta) Surface Mount 6-TSOP
• Package / CaseSC-74, SOT-457
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C8A (Ta)
• Rds On (Max) @ Id, Vgs20mOhm @ 8A, 10V
• Power Dissipation (Max)2.5W (Ta)
• Vgs(th) (Max) @ Id2.3V @ 250μA
• Supplier Device Package6-TSOP
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs20 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds600 pF @ 15 V
