  • ASSMANN WSW Components

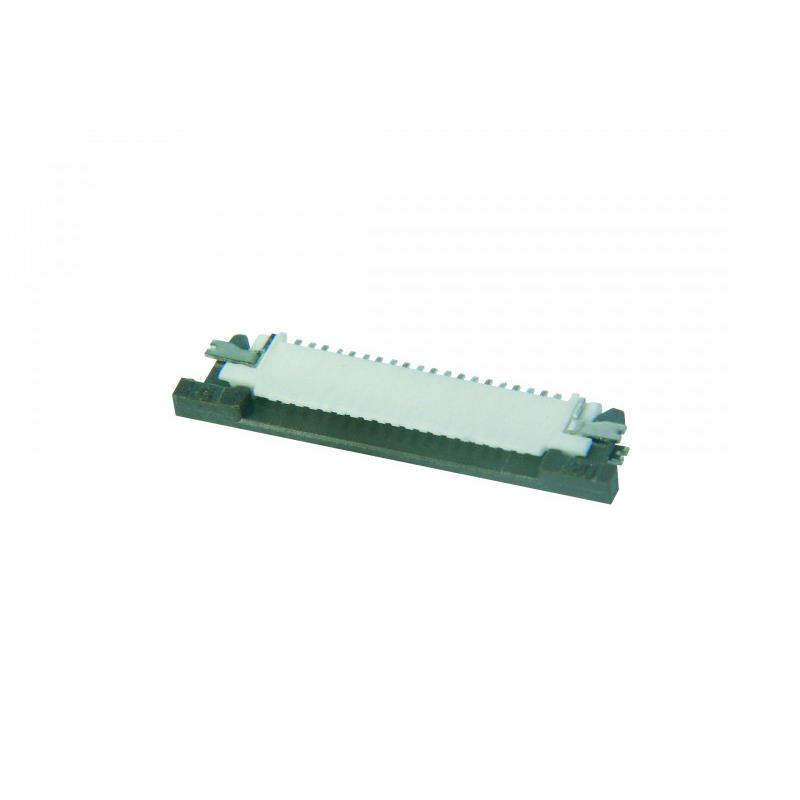

  • AFFC23-22-050-SHT-R
  • FFC, FPC (Flat Flexible) Connector Assemblies
  • FFC/FPC CONNECTORS FEMALE SMT P
  •  AFFC23-22-050-SHT-R Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerASSMANN WSW Components
  • CategoryFFC, FPC (Flat Flexible) Connector Assemblies
  • PackagesTape & Reel (TR)
  • Standard Quantity4000
  • Description22 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
  • FeaturesSolder Retention, Zero Insertion Force (ZIF)
  • Contact FinishTin
  • Current Rating (Amps)0.4A
  • Mounting TypeSurface Mount, Right Angle
  • Number of Positions22
  • Pitch0.020" (0.50mm)
  • TerminationSolder
  • Height Above Board0.047" (1.20mm)
  • Locking FeatureSlide Lock
  • Material Flammability RatingUL94 V-0
  • Actuator MaterialPolyamide (PA6T), Nylon 6T, Glass Filled
  • Contact MaterialPhosphor Bronze
  • FFC, FCB Thickness0.29mm ~ 0.34mm
  • Housing MaterialPolyamide (PA6T), Nylon 6T, Glass Filled
  • Cable End TypeStraight
  • Housing ColorNatural
  • Actuator ColorBlack
  • Flat Flex TypeFFC, FPC
  • Connector/Contact TypeContacts, Top

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AFFC23-22-050-SHT-R from ASSMANN WSW Components only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
