  • Fairchild Semiconductor
  • FQH18N50V2
  • Single FETs, MOSFETs

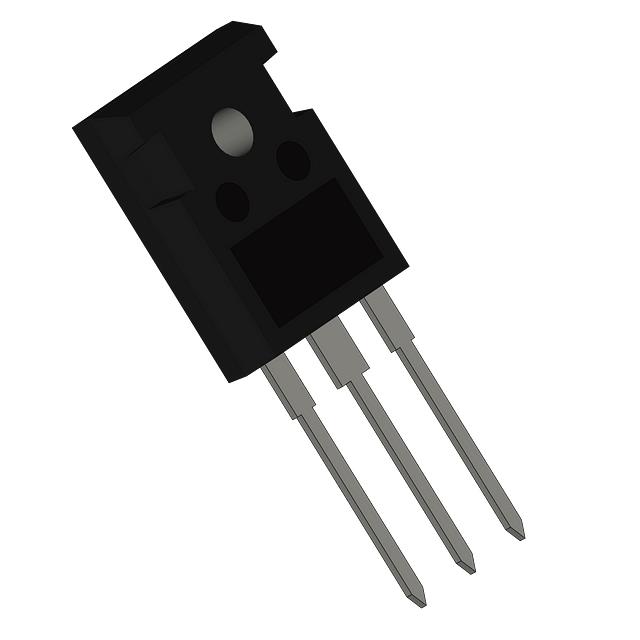

  • MOSFET N-CH 500V 20A TO247-3
  •  FQH18N50V2 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerFairchild Semiconductor
  • CategorySingle FETs, MOSFETs
  • PackagesTube
  • Standard Quantity100
  • DescriptionN-Channel 500 V 20A (Tc) 277W (Tc) Through Hole TO-247
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C20A (Tc)
  • Rds On (Max) @ Id, Vgs265mOhm @ 10A, 10V
  • Power Dissipation (Max)277W (Tc)
  • Vgs(th) (Max) @ Id5V @ 250μA
  • Supplier Device PackageTO-247
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±30V
  • Drain to Source Voltage (Vdss)500 V
  • Gate Charge (Qg) (Max) @ Vgs55 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds3290 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FQH18N50V2 from Fairchild Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 4,058
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
