• Fairchild Semiconductor
• HUFA75309T3ST
• Single FETs, MOSFETs

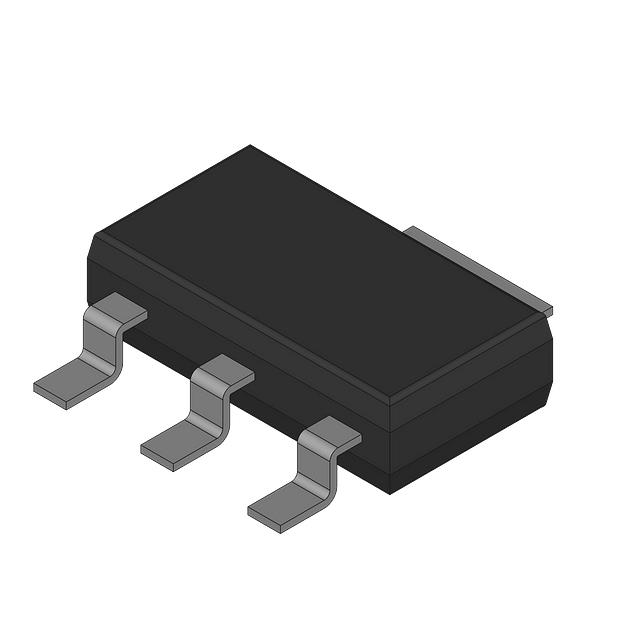

• MOSFET N-CH 55V 3A SOT223-4
•  HUFA75309T3ST Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerFairchild Semiconductor
• CategorySingle FETs, MOSFETs
• PackagesBulk
• Standard Quantity807
• DescriptionN-Channel 55 V 3A (Ta) 1.1W (Ta) Surface Mount SOT-223-4
• Package / CaseTO-261-4, TO-261AA
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C3A (Ta)
• Rds On (Max) @ Id, Vgs70mOhm @ 3A, 10V
• Power Dissipation (Max)1.1W (Ta)
• Vgs(th) (Max) @ Id4V @ 250μA
• Supplier Device PackageSOT-223-4
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)55 V
• Gate Charge (Qg) (Max) @ Vgs23 nC @ 20 V
• Input Capacitance (Ciss) (Max) @ Vds352 pF @ 25 V
