  • Goford Semiconductor
  • G08N02H
  • Discrete Semiconductor Products
  • N20V, 12A, RD<11.3M@4.5V,VTH0.5V
  •  G08N02H Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerGoford Semiconductor
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity2500

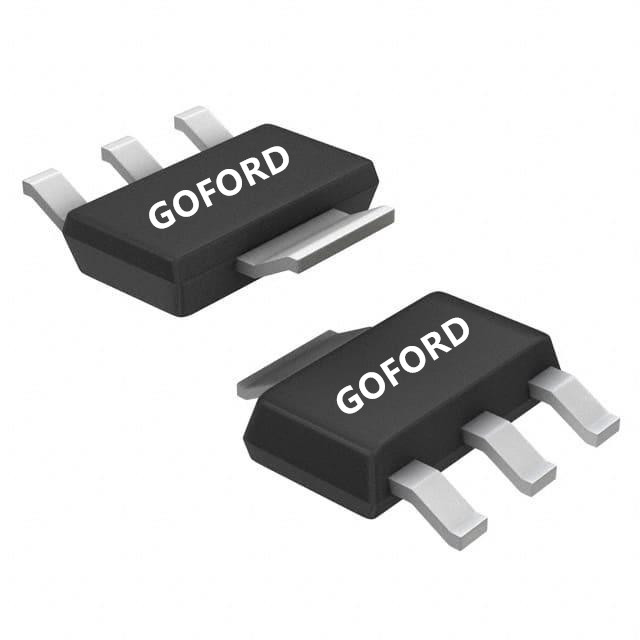

  • DescriptionN-Channel 20 V 12A (Tc) 1.7W (Tc) Surface Mount SOT-223
  • Package / CaseTO-261-4, TO-261AA
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C12A (Tc)
  • Rds On (Max) @ Id, Vgs11.3mOhm @ 1A, 4.5V
  • Power Dissipation (Max)1.7W (Tc)
  • Vgs(th) (Max) @ Id900mV @ 250µA
  • Supplier Device PackageSOT-223
  • Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
  • Vgs (Max)±12V
  • Drain to Source Voltage (Vdss)20 V
  • Gate Charge (Qg) (Max) @ Vgs12.5 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds1255 pF @ 10 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new G08N02H from Goford Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
