Product Specifications
  • AttributesAttribute Value
  • ManufacturerGrayhill, Inc.
  • CategorySwitches
  • PackagesBulk
  • Standard Quantity1

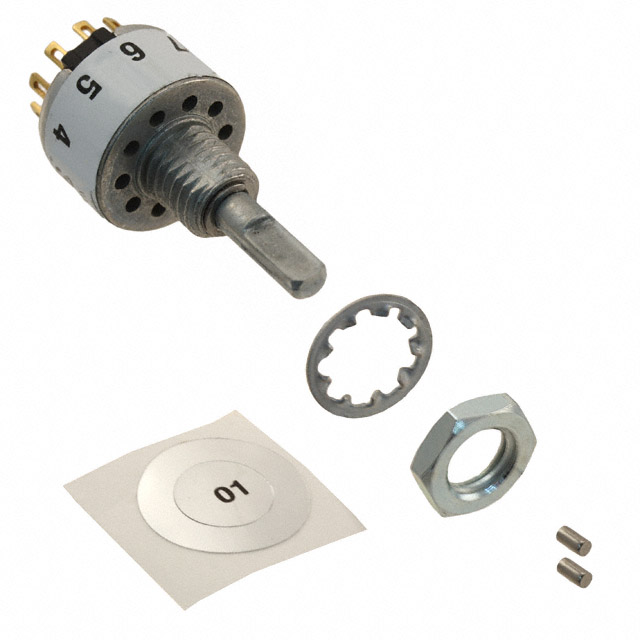

  • DescriptionRotary Switch 2 ~ 10 Position SP10T 200mA (AC/DC) 115 VAC Panel Mount
  • Contact FinishSilver
  • Current Rating (Amps)200mA (AC/DC)
  • Mounting TypePanel Mount
  • Number of Positions2 ~ 10
  • Termination StyleSolder Lug
  • Actuator Length9.53mm
  • Actuator TypeFlatted (3.17mm Dia)
  • Angle of Throw36°
  • Number of Decks1
  • Number of Poles per Deck1
  • Circuit per DeckSP10T
  • Contact MaterialBrass
  • Contact TimingNon-Shorting (BBM)
  • Index StopsAdjustable
  • Depth Behind Panel12.19mm
  • Voltage Rating - AC115 V
  • Voltage Rating - DC30 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 56D36-01-1-AJN from Grayhill, Inc. only.
