  • Harris Corporation
  • DG185AP
  • Integrated Circuits (ICs)
  • IC SWITCH SPDT X 2 75OHM 16SBDIP
  •  DG185AP Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHarris Corporation
  • CategoryIntegrated Circuits (ICs)
  • PackagesBulk
  • Standard Quantity20
  • Description2 Circuit IC Switch 2:1 75Ohm 16-SBDIP

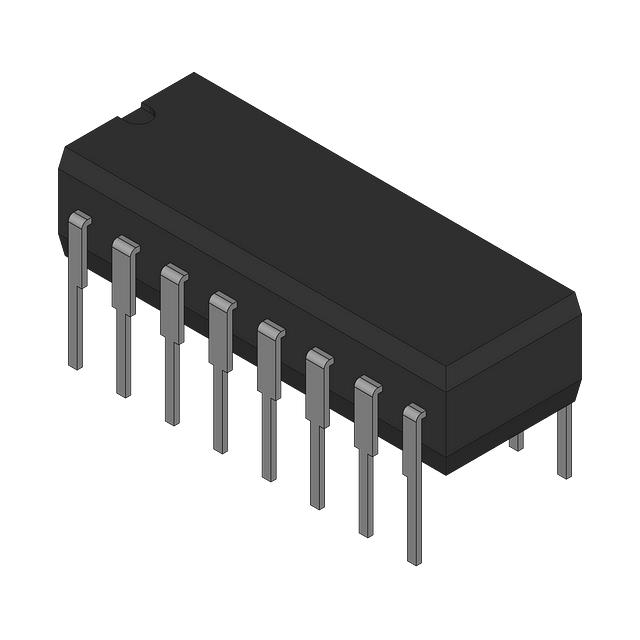

  • Package / Case16-CDIP (0.300", 7.62mm)
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 125°C
  • On-State Resistance (Max)75Ohm
  • Supplier Device Package16-SBDIP
  • Voltage - Supply, Single (V+)15V
  • Voltage - Supply, Dual (V±)±15V
  • Switch CircuitSPDT
  • Multiplexer/Demultiplexer Circuit2:1
  • Switch Time (Ton, Toff) (Max)250ns, 130ns
  • Channel Capacitance (CS(off), CD(off))9pF
  • Current - Leakage (IS(off)) (Max)1nA
  • Number of Circuits2

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new DG185AP from Harris Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 263
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
