  • Hirose Electric Co., Ltd.

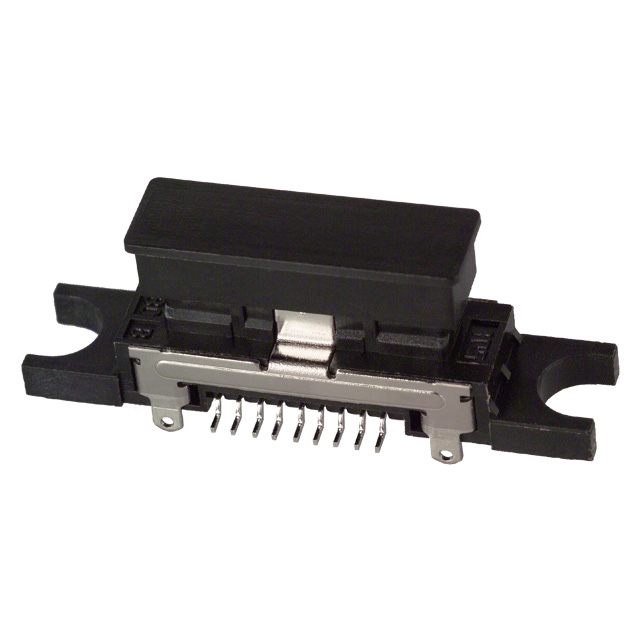

  • ST80X-18S
  • Headers, Male Pins
  • CONN HEADER SMD 18POS 1MM
  •  ST80X-18S Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHirose Electric Co., Ltd.
  • CategoryHeaders, Male Pins
  • PackagesTape & Reel (TR)
  • Standard Quantity400
  • DescriptionConnector Header Surface Mount 18 position 0.039" (1.00mm)
  • FeaturesBoard Guide, Mounting Flange, Shielded
  • Connector TypePlug, Cradle
  • Voltage Rating100V
  • Current Rating (Amps)0.5A
  • Mounting TypeSurface Mount
  • Number of Positions18
  • Number of Rows1
  • StyleBoard to Cable/Wire
  • Operating Temperature-30°C ~ 80°C
  • Contact TypeNon-Gendered
  • Fastening TypeLatch Holder
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialCopper Alloy
  • Insulation ColorBlack
  • Pitch - Mating0.039" (1.00mm)
  • Contact Finish - MatingGold
  • Contact Finish Thickness - Mating30.0μin (0.76μm)
  • Insulation Height0.378" (9.60mm)
  • Insulation MaterialPolyamide (PA), Nylon

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ST80X-18S from Hirose Electric Co., Ltd. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
