• Intersil (Renesas Electronics Corporation)
• RJL5014DPP-A0#T2
• Discrete Semiconductor Products
• ABU / MOSFET HV
•  RJL5014DPP-A0#T2 Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerIntersil (Renesas Electronics Corporation)
• CategoryDiscrete Semiconductor Products
• PackagesTube
• Standard Quantity25

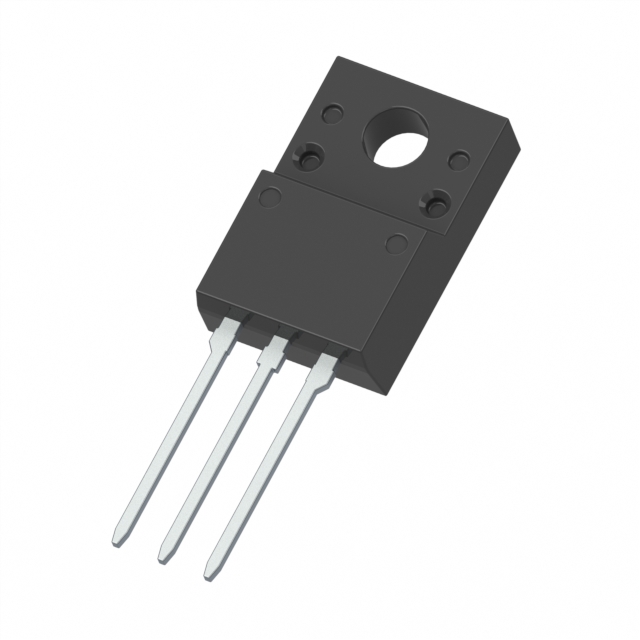

• DescriptionN-Channel 500 V 19A (Ta) 35W (Ta) Through Hole TO-220FN
• Package / CaseTO-220-3 Full Pack
• Mounting TypeThrough Hole
• Operating Temperature150°C
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C19A (Ta)
• Rds On (Max) @ Id, Vgs400mOhm @ 9.5A, 10V
• Power Dissipation (Max)35W (Ta)
• Vgs(th) (Max) @ Id4V @ 1mA
• Supplier Device PackageTO-220FN
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±30V
• Drain to Source Voltage (Vdss)500 V
• Gate Charge (Qg) (Max) @ Vgs43 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds1700 pF @ 25 V
