Intersil (Renesas Electronics Corporation)

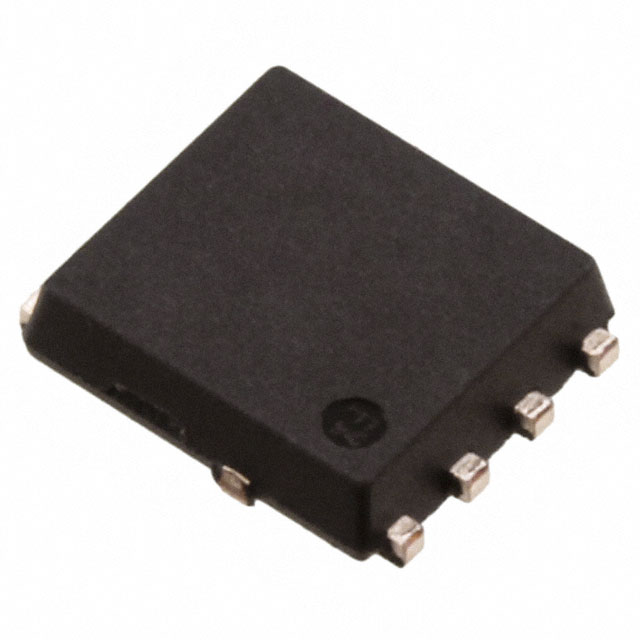

NP75P03YDG-E1-AY
Discrete Semiconductor Products
MOSFET P-CH 30V 75A 8HSON
NP75P03YDG-E1-AY Datasheet

Cost
Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerIntersil (Renesas Electronics Corporation)
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity2500
DescriptionP-Channel 30 V 75A (Tc) 1W (Ta), 138W (Tc) Surface Mount 8-HSON
Package / Case8-SMD, Flat Lead Exposed Pad
Mounting TypeSurface Mount
Operating Temperature175°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeP-Channel
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Rds On (Max) @ Id, Vgs6.2mOhm @ 37.5A, 10V
Power Dissipation (Max)1W (Ta), 138W (Tc)
Vgs(th) (Max) @ Id2.5V @ 250µA
Supplier Device Package8-HSON
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)30 V
Gate Charge (Qg) (Max) @ Vgs141 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds4800 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NP75P03YDG-E1-AY from Intersil (Renesas Electronics Corporation) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 6,239

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
