• Intersil (Renesas Electronics Corporation)
• NP100N04PUK-E1-AY
• Discrete Semiconductor Products

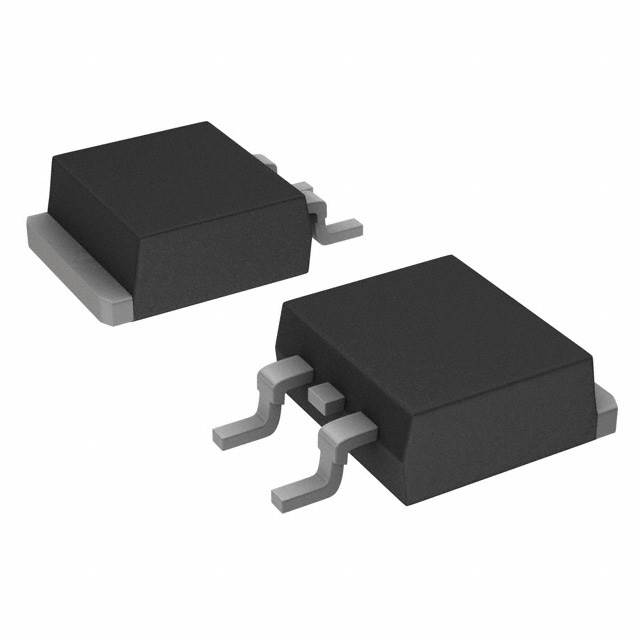

• MOSFET N-CH 40V 100A TO263
•  NP100N04PUK-E1-AY Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerIntersil (Renesas Electronics Corporation)
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity800
• DescriptionN-Channel 40 V 100A (Tc) 1.8W (Ta), 176W (Tc) Surface Mount TO-263
• Package / CaseTO-263-4, D2PAK (3 Leads + Tab), TO-263AA
• Mounting TypeSurface Mount
• Operating Temperature175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C100A (Tc)
• Rds On (Max) @ Id, Vgs2.3mOhm @ 50A, 10V
• Power Dissipation (Max)1.8W (Ta), 176W (Tc)
• Supplier Device PackageTO-263
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)40 V
• Gate Charge (Qg) (Max) @ Vgs120 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds7050 pF @ 25 V
