• Intersil (Renesas Electronics Corporation)
• NP109N04PUK-E1-AY
• Discrete Semiconductor Products

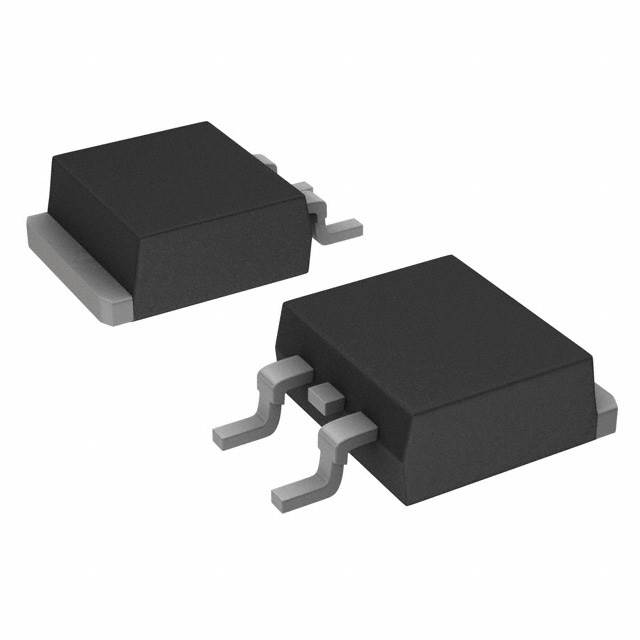

• MOSFET N-CH 40V 110A TO263
•  NP109N04PUK-E1-AY Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerIntersil (Renesas Electronics Corporation)
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity800
• DescriptionN-Channel 40 V 110A (Tc) 1.8W (Ta), 250W (Tc) Surface Mount TO-263 (D2PAK)
• Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
• Mounting TypeSurface Mount
• Operating Temperature175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C110A (Tc)
• Rds On (Max) @ Id, Vgs1.75mOhm @ 55A, 10V
• Power Dissipation (Max)1.8W (Ta), 250W (Tc)
• Vgs(th) (Max) @ Id4V @ 250µA
• Supplier Device PackageTO-263 (D2PAK)
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)40 V
• Gate Charge (Qg) (Max) @ Vgs189 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds10800 pF @ 25 V
