  • Intersil (Renesas Electronics Corporation)

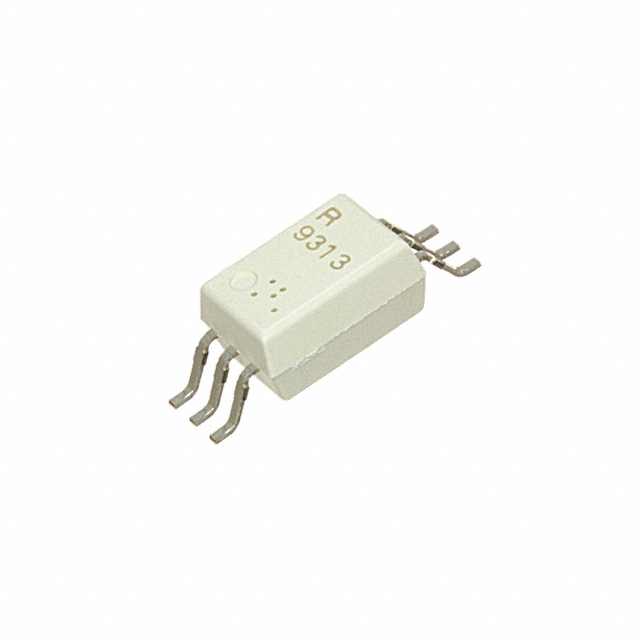

  • PS8302L2-E3-AX
  • Isolators
  • OPTOISOLATOR 5KV TRANS 6SOIC
  •  PS8302L2-E3-AX Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIntersil (Renesas Electronics Corporation)
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity2000
  • DescriptionOptoisolator Transistor Output 5000Vrms 1 Channel 6-SDIP
  • Package / Case6-SOIC (0.268", 6.80mm Width)
  • Output TypeTransistor
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 110°C
  • Voltage - Forward (Vf) (Typ)1.6V
  • Input TypeDC
  • Current - Output / Channel8mA
  • Voltage - Isolation5000Vrms
  • Current Transfer Ratio (Min)15% @ 16mA
  • Supplier Device Package6-SDIP
  • Voltage - Output (Max)35V
  • Turn On / Turn Off Time (Typ)300ns, 330ns
  • Number of Channels1
  • Current - DC Forward (If) (Max)25 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PS8302L2-E3-AX from Intersil (Renesas Electronics Corporation) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,000
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
