• Intersil (Renesas Electronics Corporation)
• NP90N04VLG-E1-AY
• Single FETs, MOSFETs

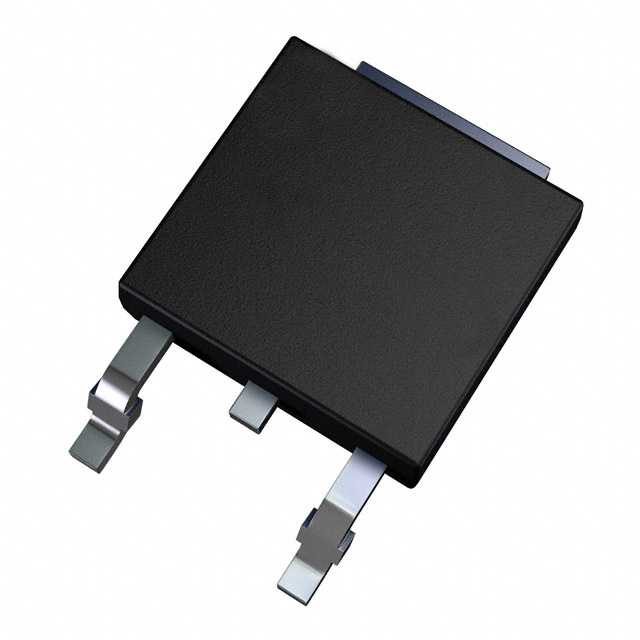

• MOSFET N-CH 40V 90A TO252
•  NP90N04VLG-E1-AY Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerIntersil (Renesas Electronics Corporation)
• CategorySingle FETs, MOSFETs
• PackagesBulk
• Standard Quantity164
• DescriptionN-Channel 40 V 90A (Tc) 1.2W (Ta), 105W (Tc) Surface Mount TO-252
• Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
• Mounting TypeSurface Mount
• Operating Temperature175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C90A (Tc)
• Rds On (Max) @ Id, Vgs4mOhm @ 45A, 10V
• Power Dissipation (Max)1.2W (Ta), 105W (Tc)
• Vgs(th) (Max) @ Id2.5V @ 250μA
• Supplier Device PackageTO-252
• Drain to Source Voltage (Vdss)40 V
• Gate Charge (Qg) (Max) @ Vgs135 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds6900 pF @ 25 V
