  • IR (Infineon Technologies)
  • IRF7509TR
  • Discrete Semiconductor Products

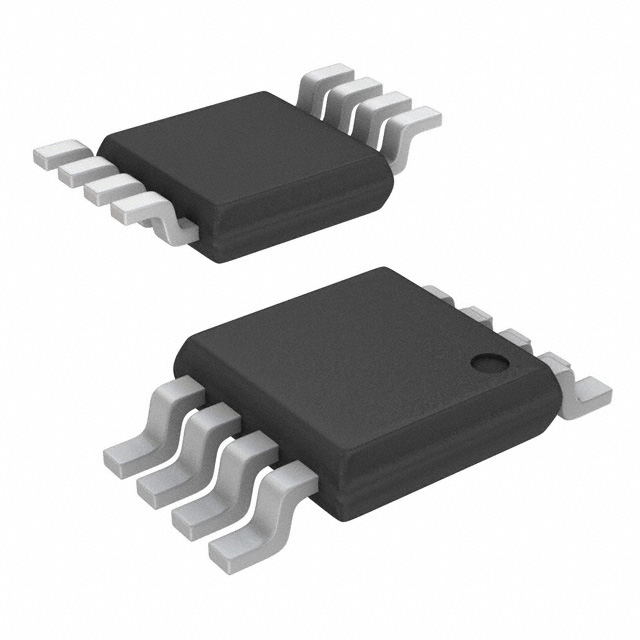

  • MOSFET N/P-CH 30V 2.7A/2A MICRO8
  •  IRF7509TR Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIR (Infineon Technologies)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity4000
  • DescriptionMosfet Array 30V 2.7A, 2A 1.25W Surface Mount Micro8™
  • Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Mounting TypeSurface Mount
  • ConfigurationN and P-Channel
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • Power - Max1.25W
  • Drain to Source Voltage (Vdss)30V
  • Current - Continuous Drain (Id) @ 25°C2.7A, 2A
  • Input Capacitance (Ciss) (Max) @ Vds210pF @ 25V
  • Rds On (Max) @ Id, Vgs110mOhm @ 1.4A, 10V
  • Gate Charge (Qg) (Max) @ Vgs12nC @ 10V
  • FET FeatureLogic Level Gate
  • Vgs(th) (Max) @ Id1V @ 250µA
  • Supplier Device PackageMicro8™

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IRF7509TR from IR (Infineon Technologies) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
