IR (Infineon Technologies)
IRL3715STRL
Discrete Semiconductor Products
MOSFET N-CH 20V 54A D2PAK
IRL3715STRL Datasheet

Cost
Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerIR (Infineon Technologies)
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity800
DescriptionN-Channel 20 V 54A (Tc) 3.8W (Ta), 71W (Tc) Surface Mount D2PAK

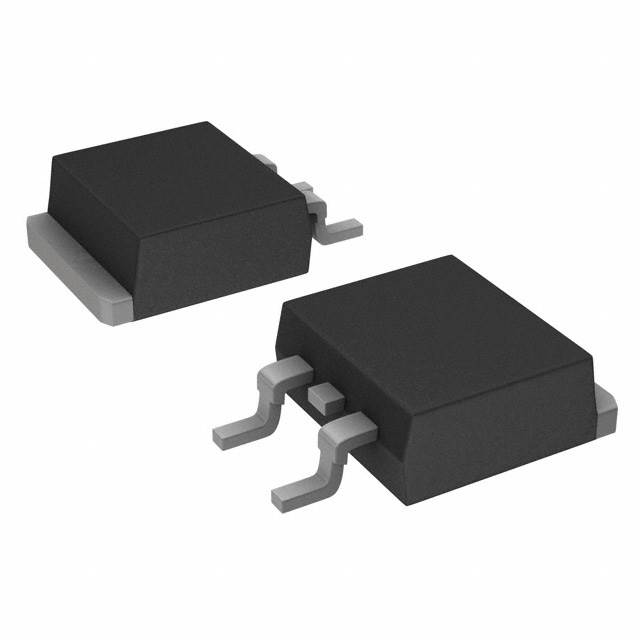

Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 175°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C54A (Tc)
Rds On (Max) @ Id, Vgs14mOhm @ 26A, 10V
Power Dissipation (Max)3.8W (Ta), 71W (Tc)
Vgs(th) (Max) @ Id3V @ 250µA
Supplier Device PackageD2PAK
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)20 V
Gate Charge (Qg) (Max) @ Vgs17 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds1060 pF @ 10 V

VIEW ALL
