  • IR (Infineon Technologies)

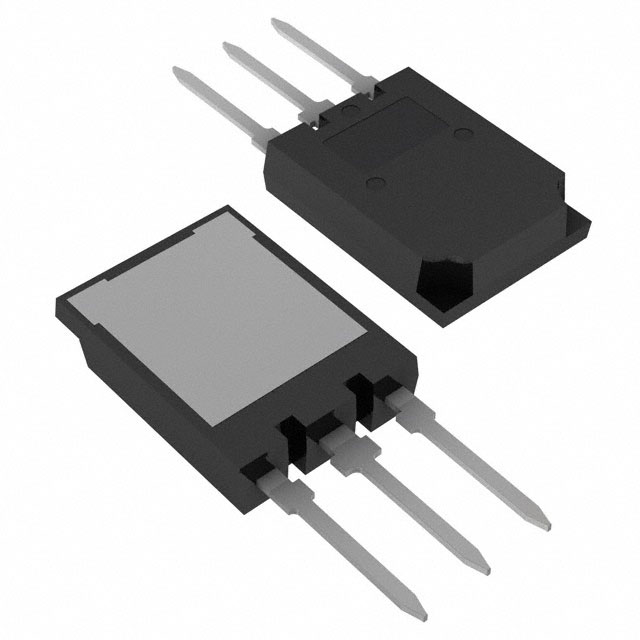

  • IRGPS46160DPBF
  • Discrete Semiconductor Products
  • IGBT 600V 240A SUPER247
  •  IRGPS46160DPBF Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIR (Infineon Technologies)
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity25
  • DescriptionIGBT 600 V 240 A 750 W Through Hole SUPER-247™ (TO-274AA)
  • Package / CaseTO-274AA
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)130 ns
  • Vce(on) (Max) @ Vge, Ic2.05V @ 15V, 120A
  • Supplier Device PackageSUPER-247™ (TO-274AA)
  • Td (on/off) @ 25°C80ns/190ns
  • Switching Energy5.75mJ (on), 3.43mJ (off)
  • Test Condition400V, 120A, 4.7Ohm, 15V
  • Gate Charge240 nC
  • Current - Collector (Ic) (Max)240 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)360 A
  • Power - Max750 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IRGPS46160DPBF from IR (Infineon Technologies) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
