• IR (Infineon Technologies)
• IRL1104LPBF
• Discrete Semiconductor Products

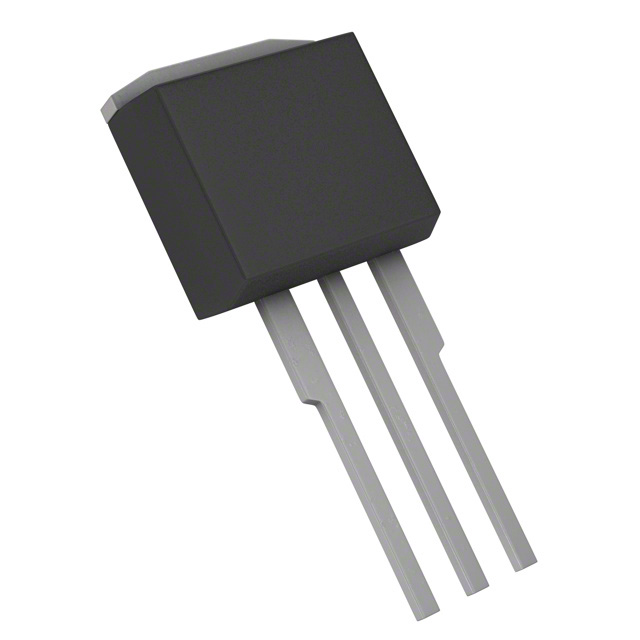

• MOSFET N-CH 40V 104A TO262
•  IRL1104LPBF Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerIR (Infineon Technologies)
• CategoryDiscrete Semiconductor Products
• PackagesTube
• Standard Quantity50
• DescriptionN-Channel 40 V 104A (Tc) 2.4W (Ta), 167W (Tc) Through Hole TO-262
• Package / CaseTO-262-3 Long Leads, I2PAK, TO-262AA
• Mounting TypeThrough Hole
• Operating Temperature-55°C ~ 175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C104A (Tc)
• Rds On (Max) @ Id, Vgs8mOhm @ 62A, 10V
• Power Dissipation (Max)2.4W (Ta), 167W (Tc)
• Vgs(th) (Max) @ Id1V @ 250µA
• Supplier Device PackageTO-262
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±16V
• Drain to Source Voltage (Vdss)40 V
• Gate Charge (Qg) (Max) @ Vgs68 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds3445 pF @ 25 V
