  • IR (Infineon Technologies)

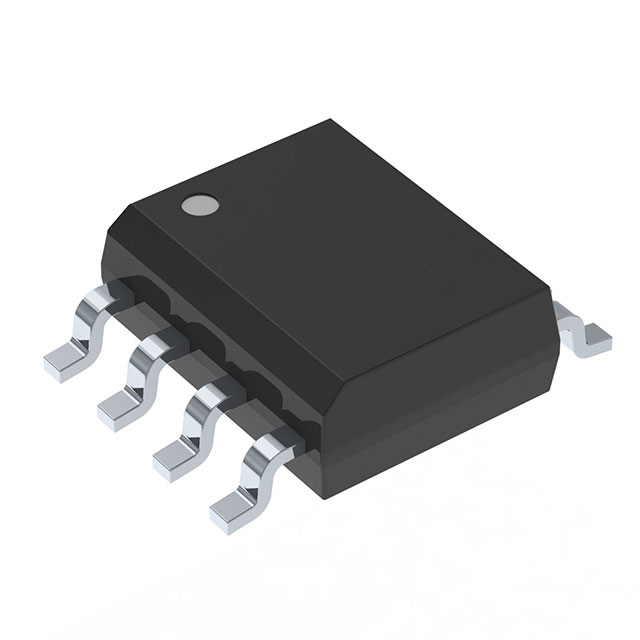

  • IRF7322D1
  • Single FETs, MOSFETs
  • MOSFET P-CH 20V 5.3A 8SO
  •  IRF7322D1 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIR (Infineon Technologies)
  • CategorySingle FETs, MOSFETs
  • PackagesTube
  • Standard Quantity95
  • DescriptionP-Channel 20 V 5.3A (Ta) 2W (Ta) Surface Mount 8-SO
  • Package / Case8-SOIC (0.154", 3.90mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeP-Channel
  • Current - Continuous Drain (Id) @ 25°C5.3A (Ta)
  • Rds On (Max) @ Id, Vgs62mOhm @ 2.9A, 4.5V
  • FET FeatureSchottky Diode (Isolated)
  • Power Dissipation (Max)2W (Ta)
  • Vgs(th) (Max) @ Id700mV @ 250μA (Min)
  • Supplier Device Package8-SO
  • Drive Voltage (Max Rds On, Min Rds On)2.7V, 4.5V
  • Vgs (Max)±12V
  • Drain to Source Voltage (Vdss)20 V
  • Gate Charge (Qg) (Max) @ Vgs29 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds780 pF @ 15 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new IRF7322D1 from IR (Infineon Technologies) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
