  • Isocom Components

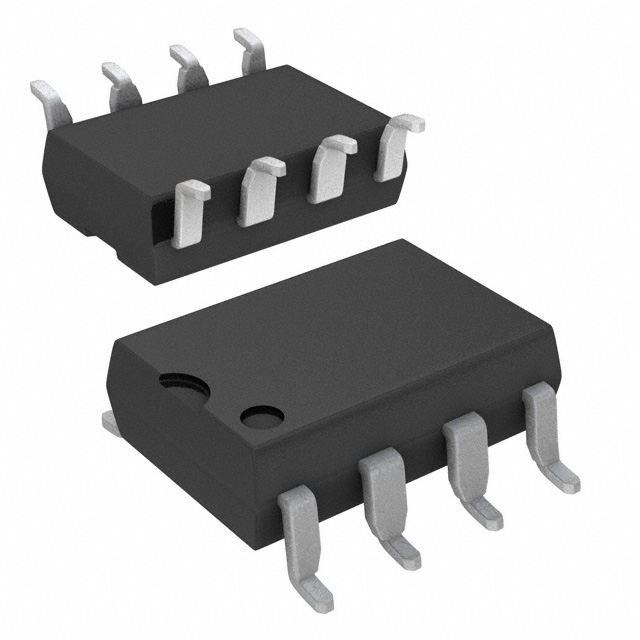

  • ICPL2601SMT&R
  • Logic Output Optoisolators
  • OPTOISOLATOR 2.5KV OPN COLL 8SMD
  •  ICPL2601SMT&R Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerIsocom Components
  • CategoryLogic Output Optoisolators
  • PackagesTape & Reel (TR)
  • Standard Quantity1000
  • DescriptionLogic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 2500Vrms 1 Channel 1kV/µs CMTI 8-SMD Gull Wing
  • Package / Case8-SMD, Gull Wing
  • Output TypeOpen Collector, Schottky Clamped
  • Mounting TypeSurface Mount
  • Operating Temperature0°C ~ 70°C
  • Voltage - Supply7V
  • Voltage - Forward (Vf) (Typ)1.55V
  • Data Rate10Mbps
  • Input TypeDC
  • Voltage - Isolation2500Vrms
  • Current - DC Forward (If) (Max)20mA
  • Inputs - Side 1/Side 21/0
  • Supplier Device Package8-SMD Gull Wing
  • Common Mode Transient Immunity (Min)1kV/μs
  • Propagation Delay tpLH / tpHL (Max)75ns, 75ns
  • Number of Channels1
  • Current - Output / Channel25 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ICPL2601SMT&R from Isocom Components only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,946
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
