  • J.W. Miller / Bourns

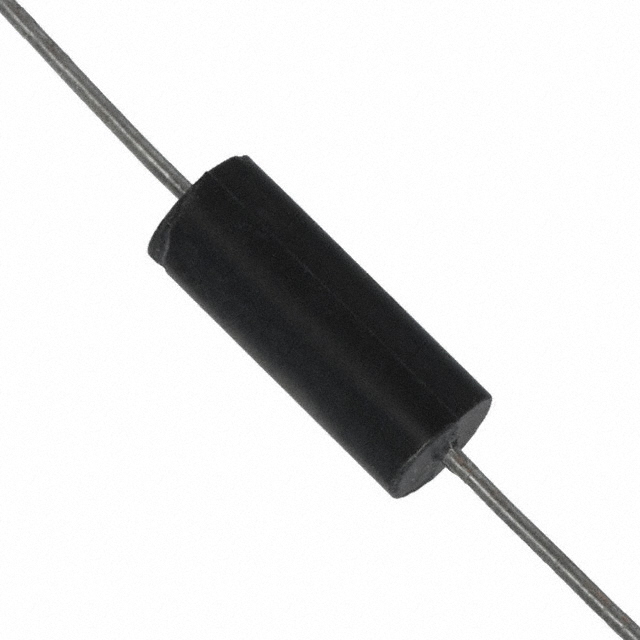

  • 9250-156
  • Fixed Inductors
  • FIXED IND 15MH 22MA 157 OHM TH
  •  9250-156 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerJ.W. Miller / Bourns
  • CategoryFixed Inductors
  • PackagesBulk
  • Standard Quantity1000
  • Description15 mH Shielded Drum Core, Wirewound Inductor 22 mA 157Ohm Max Axial
  • Tolerance±10%
  • Package / CaseAxial
  • Size / Dimension0.162" Dia x 0.410" L (4.11mm x 10.41mm)
  • Mounting TypeThrough Hole
  • ShieldingShielded
  • TypeDrum Core, Wirewound
  • Operating Temperature-55°C ~ 105°C
  • DC Resistance (DCR)157Ohm Max
  • Q @ Freq30 @ 79kHz
  • Frequency - Self Resonant290kHz
  • Current - Saturation (Isat)12mA
  • Material - CoreFerrite
  • Inductance Frequency - Test79 kHz
  • Inductance15 mH
  • Current Rating (Amps)22 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 9250-156 from J.W. Miller / Bourns only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
