Product Specifications
  • AttributesAttribute Value
  • ManufacturerJAE Electronics
  • CategoryHeaders, Male Pins
  • PackagesTube
  • Standard Quantity64

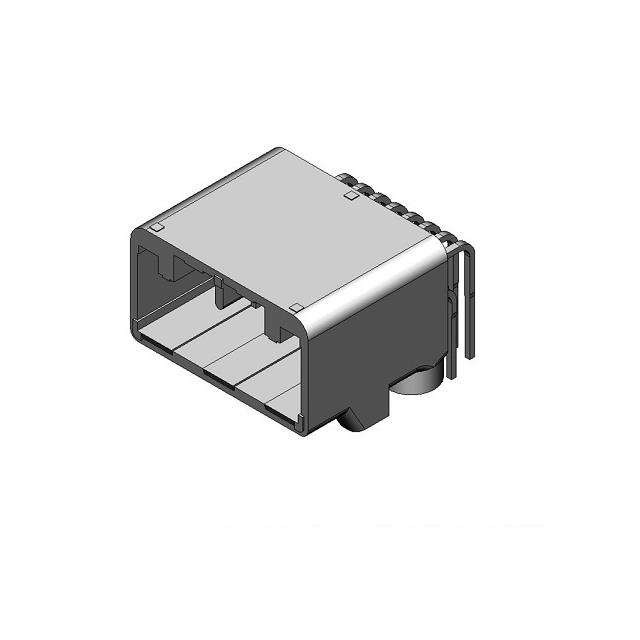

  • DescriptionConnector Header Through Hole, Right Angle 16 position 0.087" (2.20mm)
  • FeaturesMounting Flange
  • Connector TypeHeader
  • Current Rating (Amps)3A
  • Mounting TypeThrough Hole, Right Angle
  • Number of Positions16
  • Number of Rows2
  • StyleBoard to Cable/Wire
  • Operating Temperature-40°C ~ 85°C
  • Contact TypeMale Pin
  • Fastening TypeLocking Ramp
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialBrass
  • Insulation ColorBlack
  • Pitch - Mating0.087" (2.20mm)
  • Contact Finish - MatingTin
  • Contact Finish - PostTin
  • Contact ShapeSquare
  • Contact Length - Post0.126" (3.20mm)
  • Insulation Height0.626" (15.90mm)
  • ShroudingShrouded - 4 Wall
  • Insulation MaterialSyndiotactic Polystyrene (SPS), Glass Filled
  • Row Spacing - Mating0.118" (3.00mm)
  • Contact Length - Mating0.303" (7.70mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MX84B016NF1 from JAE Electronics only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 142
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
