JST

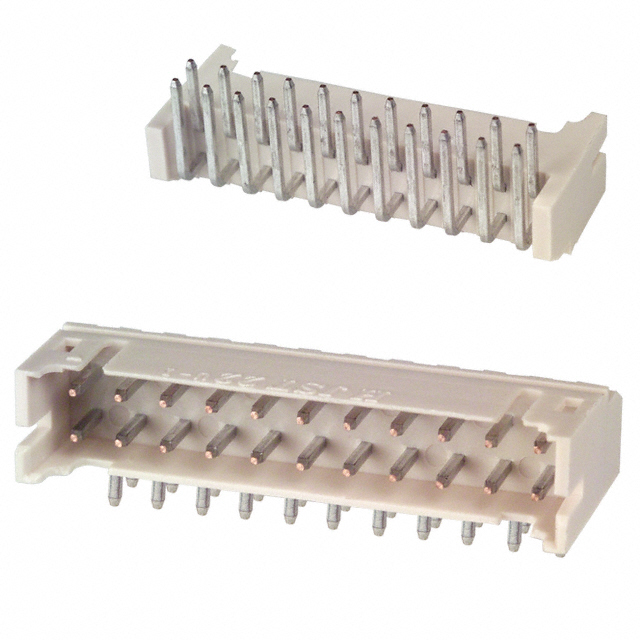

S22B-PHDSS
Headers, Male Pins
CONN HEADER R/A 22POS 2MM
S22B-PHDSS Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerJST
CategoryHeaders, Male Pins
PackagesBulk
Standard Quantity250
DescriptionConnector Header Through Hole, Right Angle 22 position 0.079" (2.00mm)
Connector TypeHeader
Voltage Rating250V
Current Rating (Amps)3A
Mounting TypeThrough Hole, Right Angle
Number of Positions22
Number of Rows2
StyleBoard to Cable/Wire
Operating Temperature-25°C ~ 85°C
Contact TypeMale Pin
Fastening TypeDetent Lock
Number of Positions LoadedAll
TerminationSolder
Material Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Insulation ColorNatural
Pitch - Mating0.079" (2.00mm)
Contact Finish - MatingTin
Contact Finish - PostTin
Contact ShapeSquare
Contact Length - Post0.118" (3.00mm)
Insulation Height0.197" (5.00mm)
ShroudingShrouded - 4 Wall
Insulation MaterialPolyamide (PA), Nylon, Glass Filled
Row Spacing - Mating0.079" (2.00mm)
Contact Length - Mating0.114" (2.90mm)

VIEW ALL
