  • Linear Technology (Analog Devices, Inc.)
  • ADUM1420BRWZ-RL
  • Isolators
  • DGT ISO 1.667KV GT DVR 28SOIC
  •  ADUM1420BRWZ-RL Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLinear Technology (Analog Devices, Inc.)
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity1000
  • Description100mA Gate Driver Magnetic Coupling 1667Vrms 4 Channel 28-SOIC

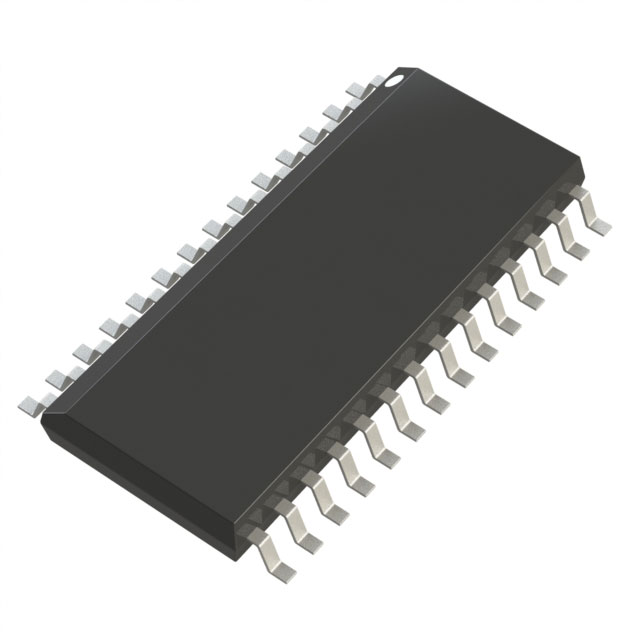

  • Package / Case28-SOIC (0.295", 7.50mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 105°C
  • Current - Peak Output100mA
  • TechnologyMagnetic Coupling
  • Voltage - Isolation1667Vrms
  • Supplier Device Package28-SOIC
  • Rise / Fall Time (Typ)25ns, 25ns (Max)
  • Common Mode Transient Immunity (Min)75kV/µs
  • Propagation Delay tpLH / tpHL (Max)128ns, 128ns
  • Pulse Width Distortion (Max)8ns
  • Number of Channels4
  • Voltage - Output Supply12V ~ 18V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ADUM1420BRWZ-RL from Linear Technology (Analog Devices, Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
