  • Littelfuse / IXYS RF

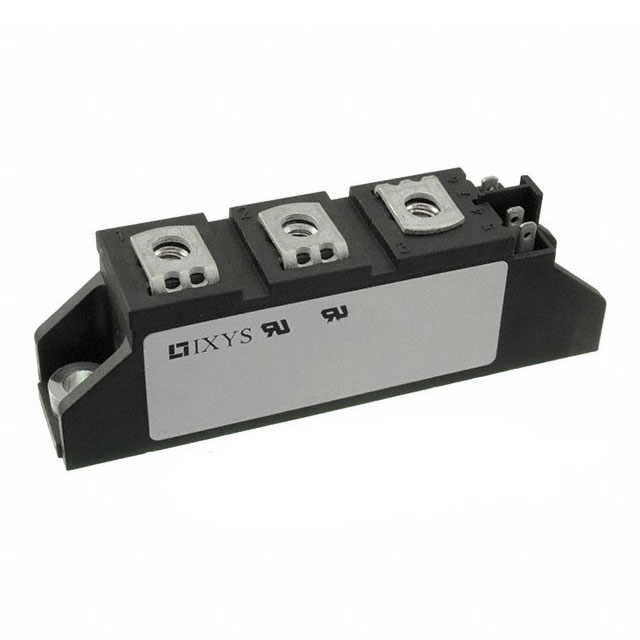

  • MCNA120PD2200TB
  • Discrete Semiconductor Products
  • BIPOLAR MODULE - THYRISTOR TO-2
  •  MCNA120PD2200TB Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerLittelfuse / IXYS RF
  • CategoryDiscrete Semiconductor Products
  • PackagesBox
  • Standard Quantity36
  • DescriptionSCR Module 2.2 kV 190 A Series Connection - SCR/Diode Chassis Mount TO-240AA
  • Package / CaseTO-240AA
  • Mounting TypeChassis Mount
  • Operating Temperature-40°C ~ 140°C (TJ)
  • StructureSeries Connection - SCR/Diode
  • Current - Hold (Ih) (Max)150 mA
  • Current - Gate Trigger (Igt) (Max)100 mA
  • Current - Non Rep. Surge 50, 60Hz (Itsm)2200A, 2380A
  • Number of SCRs, Diodes1 SCR, 1 Diode
  • Current - On State (It (AV)) (Max)120 A
  • Voltage - Gate Trigger (Vgt) (Max)1.5 V
  • Current - On State (It (RMS)) (Max)190 A
  • Voltage - Off State2.2 kV

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MCNA120PD2200TB from Littelfuse / IXYS RF only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
