• Littelfuse / IXYS RF
• CLA20EF1200PB
• Discrete Semiconductor Products

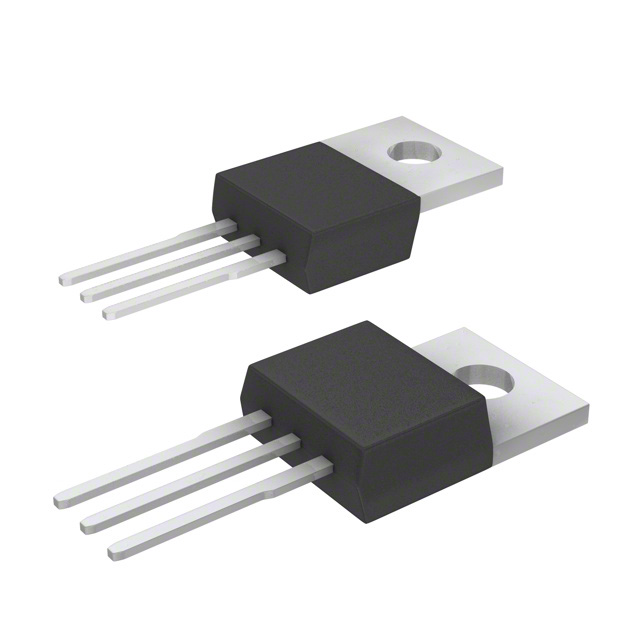

• SCR 1.2KV 35MA TO220
•  CLA20EF1200PB Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerLittelfuse / IXYS RF
• CategoryDiscrete Semiconductor Products
• PackagesTube
• Standard Quantity50
• DescriptionSCR 1.2 kV 35 mA Standard Recovery Through Hole TO-220
• Package / CaseTO-220-3
• Mounting TypeThrough Hole
• SCR TypeStandard Recovery
• Operating Temperature-40°C ~ 150°C (TJ)
• Current - Hold (Ih) (Max)25 mA
• Current - Gate Trigger (Igt) (Max)20 mA
• Current - Non Rep. Surge 50, 60Hz (Itsm)120A, 130A
• Current - On State (It (AV)) (Max)20 A
• Voltage - Gate Trigger (Vgt) (Max)1.3 V
• Voltage - On State (Vtm) (Max)1.4 V
• Supplier Device PackageTO-220
• Current - On State (It (RMS)) (Max)35 mA
• Voltage - Off State1.2 kV
