  • Maxim Integrated / Analog Devices
  • MX7847AN
  • Integrated Circuits (ICs)
  • IC DAC 12BIT V-OUT 24DIP
  •  MX7847AN Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMaxim Integrated / Analog Devices
  • CategoryIntegrated Circuits (ICs)
  • PackagesBulk
  • Standard Quantity10
  • Description12 Bit Digital to Analog Converter 2 24-PDIP

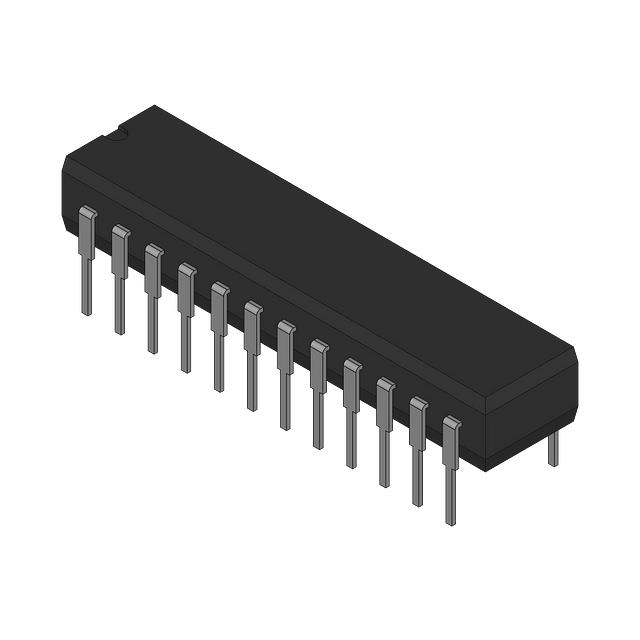

  • Package / Case24-DIP (0.300", 7.62mm)
  • Output TypeVoltage - Buffered
  • Mounting TypeThrough Hole
  • Number of Bits12
  • Data InterfaceParallel
  • Reference TypeExternal
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Supply, Analog±11.4V ~ 16.5V
  • Voltage - Supply, Digital±11.4V ~ 16.5V
  • Settling Time4µs (Typ)
  • Supplier Device Package24-PDIP
  • ArchitectureMultiplying DAC, R-2R
  • Number of D/A Converters2
  • INL/DNL (LSB)±1 (Max), ±1 (Max)
  • Differential OutputNo
  • DigiKey ProgrammableNot Verified

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MX7847AN from Maxim Integrated / Analog Devices only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 267
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1

MORECustomer Reviews
