• Micro Commercial Components (MCC)
• MCM13N03-TP
• Single FETs, MOSFETs

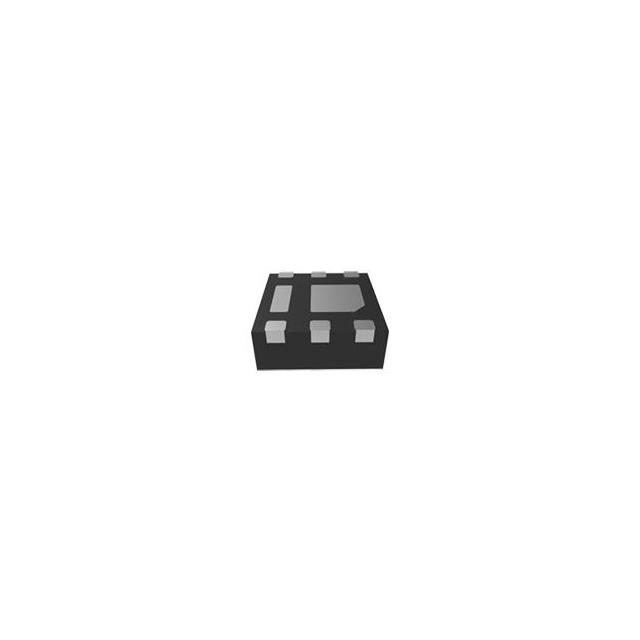

• N-CHANNEL MOSFET,DFN2020-6LE
•  MCM13N03-TP Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerMicro Commercial Components (MCC)
• CategorySingle FETs, MOSFETs
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionN-Channel 30 V 13A 2.9W Surface Mount DFN2020-6LE
• Package / Case6-VDFN Exposed Pad
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C13A
• Rds On (Max) @ Id, Vgs12mOhm @ 8A, 10V
• Power Dissipation (Max)2.9W
• Vgs(th) (Max) @ Id2.5V @ 250μA
• Supplier Device PackageDFN2020-6LE
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs23.6 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds1015 pF @ 15 V
