• Micro Commercial Components (MCC)

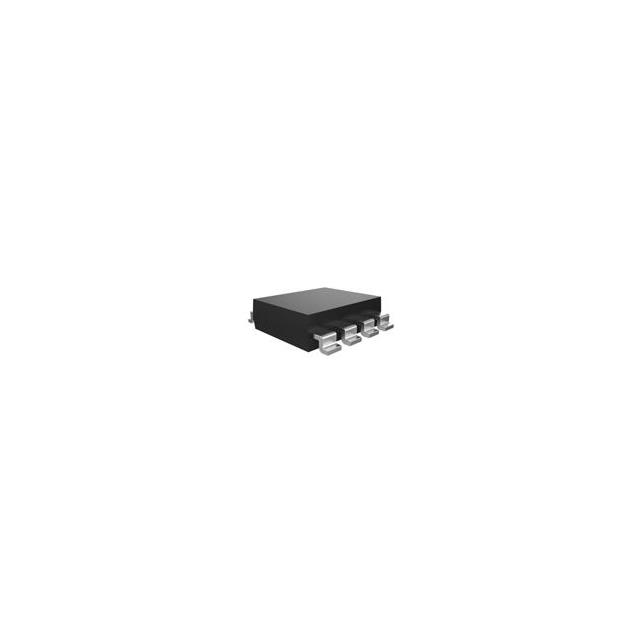

• MCQ20N03HE3-TP
• Single FETs, MOSFETs
• Interface
•  MCQ20N03HE3-TP Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerMicro Commercial Components (MCC)
• CategorySingle FETs, MOSFETs
• PackagesBulk
• Standard Quantity1
• DescriptionN-Channel 30 V 20A (Ta) 3W Surface Mount 8-SOP
• Package / Case8-SOIC (0.154", 3.90mm Width)
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C20A (Ta)
• Rds On (Max) @ Id, Vgs6.3mOhm @ 18A, 10V
• Power Dissipation (Max)3W
• Vgs(th) (Max) @ Id2.5V @ 250μA
• Supplier Device Package8-SOP
• GradeAutomotive
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs46.3 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds2191 pF @ 15 V
• QualificationAEC-Q101
