  • Micro Commercial Components (MCC)

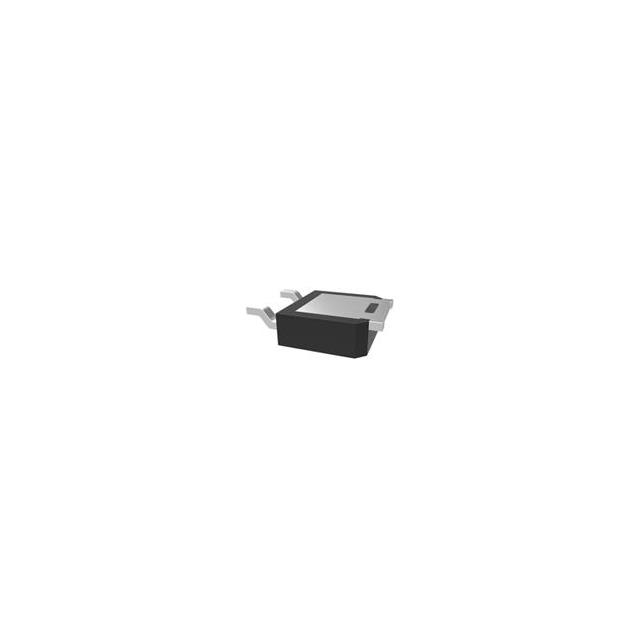

  • MCU20N06B-TP
  • Single FETs, MOSFETs
  • MOSFET N-CH 60VDS 20VGS 20A 4.1N
  •  MCU20N06B-TP Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMicro Commercial Components (MCC)
  • CategorySingle FETs, MOSFETs
  • PackagesBulk
  • Standard Quantity1
  • DescriptionN-Channel 60 V 20A Surface Mount DPAK
  • Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C20A
  • Rds On (Max) @ Id, Vgs45mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id3V @ 250μA
  • Supplier Device PackageDPAK
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)60 V
  • Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds500 pF @ 30 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MCU20N06B-TP from Micro Commercial Components (MCC) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
