  • National Semiconductor
  • 54S15DM
  • Integrated Circuits (ICs)

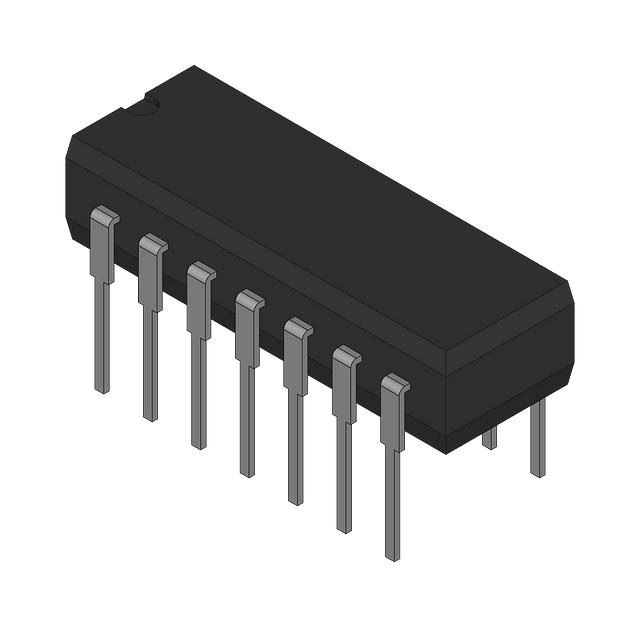

  • IC GATE AND 3CH 3-INP 14CERDIP
  •  54S15DM Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerNational Semiconductor
  • CategoryIntegrated Circuits (ICs)
  • PackagesBulk
  • Standard Quantity544
  • DescriptionAND Gate IC 3 Channel Open Collector 14-CERDIP
  • FeaturesOpen Collector
  • Package / Case14-CDIP (0.300", 7.62mm)
  • Mounting TypeThrough Hole
  • Logic TypeAND Gate
  • Operating Temperature-55°C ~ 125°C
  • Voltage - Supply4.5V ~ 5.5V
  • Current - Output High, Low250µA, 20mA
  • Number of Inputs3
  • Supplier Device Package14-CERDIP
  • Input Logic Level - High2V
  • Input Logic Level - Low0.8V
  • Max Propagation Delay @ V, Max CL8.5ns @ 5V, 50pF
  • Number of Circuits3
  • Current - Quiescent (Max)42 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 54S15DM from National Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,222
Please send an RFQ for instant price and inventory.
