  • National Semiconductor
  • DM7474N
  • Integrated Circuits (ICs)

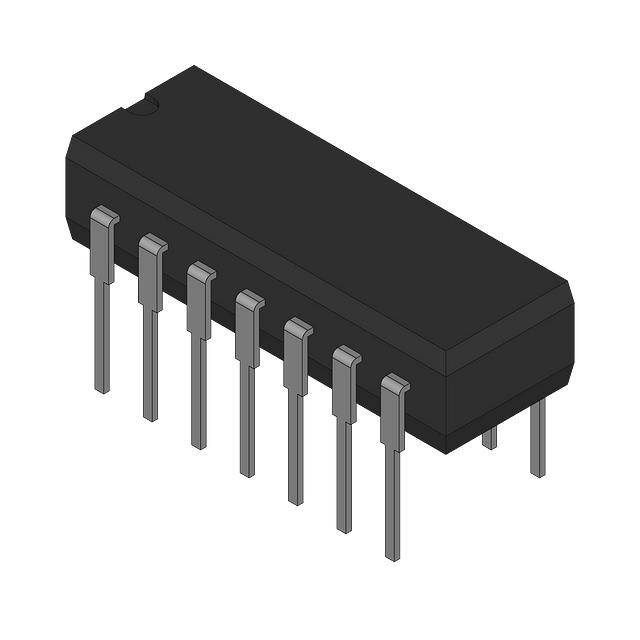

  • IC FF D-TYPE DUAL 1BIT 14DIP
  •  DM7474N Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerNational Semiconductor
  • CategoryIntegrated Circuits (ICs)
  • PackagesBulk
  • Standard Quantity1110
  • DescriptionFlip Flop 2 Element D-Type 1 Bit Positive Edge 14-DIP (0.300", 7.62mm)
  • Package / Case14-DIP (0.300", 7.62mm)
  • Output TypeComplementary
  • Mounting TypeThrough Hole
  • Number of Elements2
  • FunctionSet(Preset) and Reset
  • TypeD-Type
  • Operating Temperature0°C ~ 70°C (TA)
  • Voltage - Supply4.75V ~ 5.25V
  • Current - Quiescent (Iq)30 mA
  • Current - Output High, Low400µA, 16mA
  • Trigger TypePositive Edge
  • Clock Frequency15 MHz
  • Supplier Device Package14-PDIP
  • Max Propagation Delay @ V, Max CL40ns @ 5V, 15pF
  • Number of Bits per Element1

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new DM7474N from National Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 13,698
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1

MORECustomer Reviews
  • Ra***na
    Received, it's good!
  • Na***tz
    Doris, thank you again for the smooth handling of our first order. The parts have arrived an we are more than satisfied.I would like to request these and a few other parts again.
  • Mi***al
    All is good! I look forward to further cooperation.
  • Da***id
    Received, looks OK. Thank for the present, I will use it.
  • Do***er
    It came very quickly,good service,thanks
