  • NEC Corporation
  • AN1L3N
  • Single, Pre-Biased Bipolar Transistors
  • TRANS PREBIAS PNP 50V 0.1A TO92
  •  AN1L3N Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerNEC Corporation
  • CategorySingle, Pre-Biased Bipolar Transistors
  • PackagesBulk
  • Standard Quantity1159
  • DescriptionPre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 250 mW Through Hole TO-92

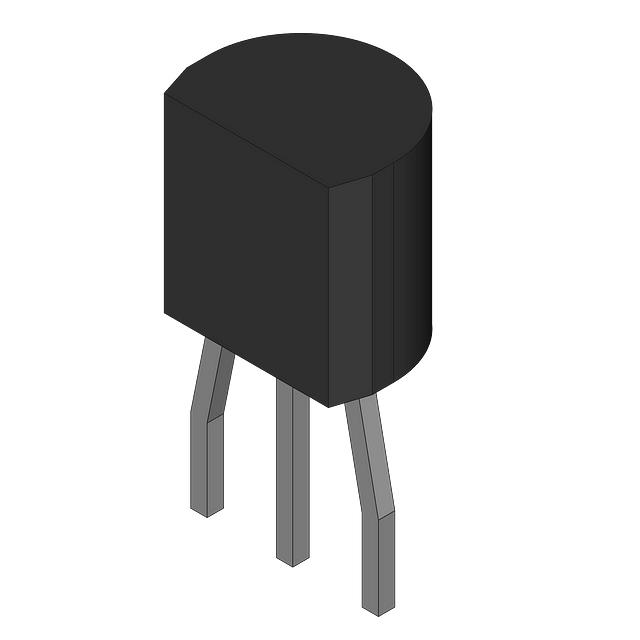

  • Package / CaseTO-226-3, TO-92-3 (TO-226AA)
  • Mounting TypeThrough Hole
  • Transistor TypePNP - Pre-Biased
  • Vce Saturation (Max) @ Ib, Ic200mV @ 250μA, 5mA
  • Current - Collector Cutoff (Max)100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 50mA, 5V
  • Supplier Device PackageTO-92
  • Current - Collector (Ic) (Max)100 mA
  • Voltage - Collector Emitter Breakdown (Max)50 V
  • Power - Max250 mW
  • Resistor - Base (R1)4.7 kOhms
  • Resistor - Emitter Base (R2)10 kOhms
