• Nexperia
• PMPB215ENEAHP
• Single FETs, MOSFETs
• PMPB215ENEA/SOT1220/SOT1220
•  PMPB215ENEAHP Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerNexperia
• CategorySingle FETs, MOSFETs
• PackagesTape & Reel (TR)
• Standard Quantity10000

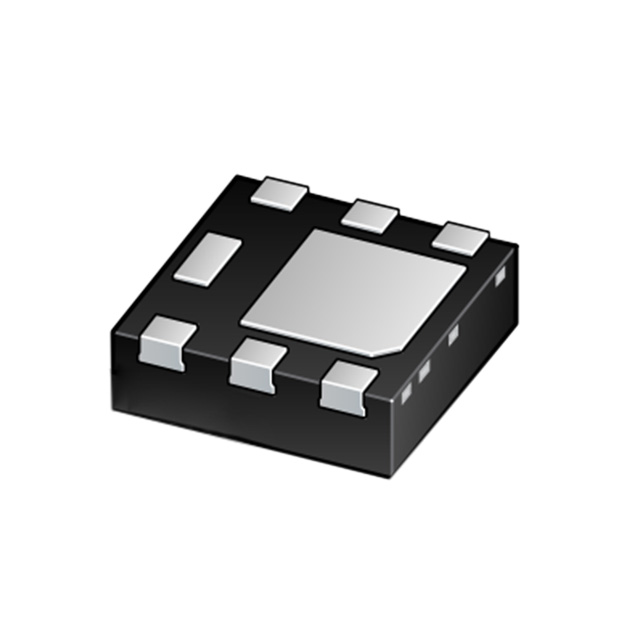

• DescriptionN-Channel 80 V 1.9A (Ta) 1.6W (Ta), 15.6W (Tc) Surface Mount DFN2020MD-6
• Package / Case6-UDFN Exposed Pad
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C1.9A (Ta)
• Rds On (Max) @ Id, Vgs230mOhm @ 1.9A, 10V
• Power Dissipation (Max)1.6W (Ta), 15.6W (Tc)
• Vgs(th) (Max) @ Id2.7V @ 250μA
• Supplier Device PackageDFN2020MD-6
• GradeAutomotive
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)80 V
• Gate Charge (Qg) (Max) @ Vgs7.2 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds215 pF @ 40 V
• QualificationAEC-Q101

VIEW ALL
