Product Specifications
  • AttributesAttribute Value
  • ManufacturerNKK Switches
  • CategorySwitches
  • PackagesBulk
  • Standard Quantity1

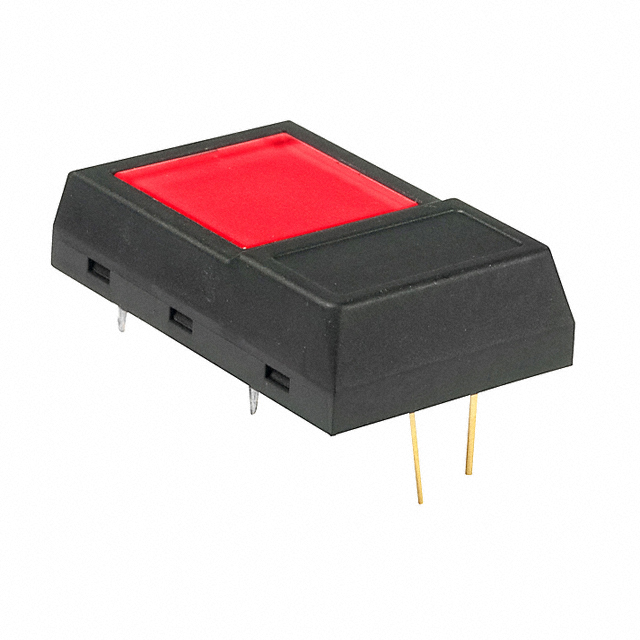

  • DescriptionTactile Switch SPST-NO Top Actuated Through Hole
  • FeaturesProcess Sealed
  • Mounting TypeThrough Hole
  • CircuitSPST-NO
  • Switch FunctionOff-Mom
  • Operating Temperature-25°C ~ 70°C
  • Termination StylePC Pin
  • Illumination Type, ColorLED, Red
  • Illumination Voltage (Nominal)1.77 VDC
  • IlluminationIlluminated
  • Contact Rating @ Voltage0.05A @ 24VDC
  • Actuator TypeSquare Button
  • Operating Force300gf
  • Outline22.80mm x 17.70mm
  • Actuator Height off PCB, Vertical6.70mm
  • Actuator OrientationTop Actuated

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new JF15AP1CC from NKK Switches only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 14
Please send an RFQ for instant price and inventory.
