  • Omron Electronic Components

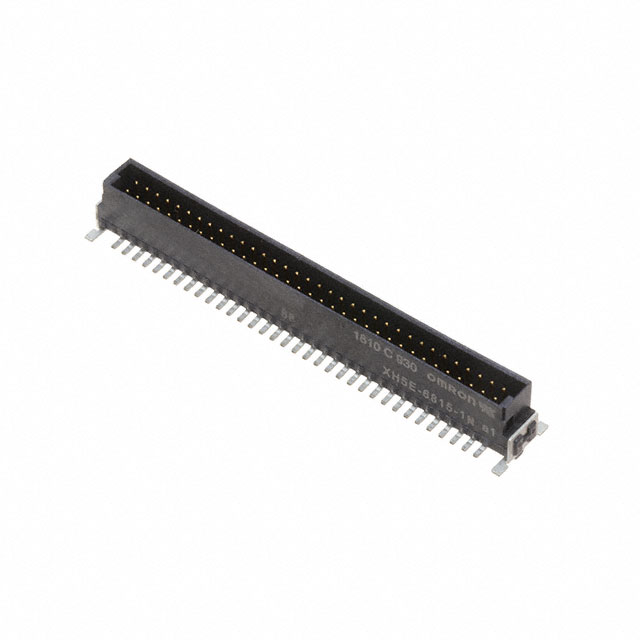

  • XH5E-6815-1N
  • Headers, Male Pins
  • PLUG, STRAIGHT, SMT PINS
  •  XH5E-6815-1N Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerOmron Electronic Components
  • CategoryHeaders, Male Pins
  • PackagesTape & Reel (TR)
  • Standard Quantity280
  • DescriptionConnector Header Surface Mount 68 position 0.050" (1.27mm)
  • FeaturesBoard Guide, Pick and Place, Solder Retention
  • Connector TypeHeader
  • Voltage Rating100VAC
  • Current Rating (Amps)1A
  • Mounting TypeSurface Mount
  • Number of Positions68
  • Number of Rows2
  • StyleBoard to Board or Cable
  • Operating Temperature-55°C ~ 105°C
  • Contact TypeMale Pin
  • Fastening TypePush-Pull
  • Number of Positions LoadedAll
  • TerminationSolder
  • Material Flammability RatingUL94 V-0
  • Contact MaterialCopper Alloy
  • Mated Stacking Heights8mm, 10.8mm
  • Insulation ColorBlack
  • Pitch - Mating0.050" (1.27mm)
  • Contact Finish - MatingGold
  • Contact Finish - PostTin
  • Contact ShapeSquare
  • Insulation Height0.260" (6.60mm)
  • ShroudingShrouded - 4 Wall
  • Insulation MaterialLiquid Crystal Polymer (LCP)
  • Row Spacing - Mating0.050" (1.27mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new XH5E-6815-1N from Omron Electronic Components only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 172
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
