Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • Power Integrations
  • LNK3209P
  • Integrated Circuits (ICs)
  • 600 MA (MDCM) 1000 MA (CCM)
  •  LNK3209P Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerPower Integrations
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity50
  • DescriptionConverter Offline Buck, Buck-Boost, Flyback Topology 66kHz 8-PDIP-C

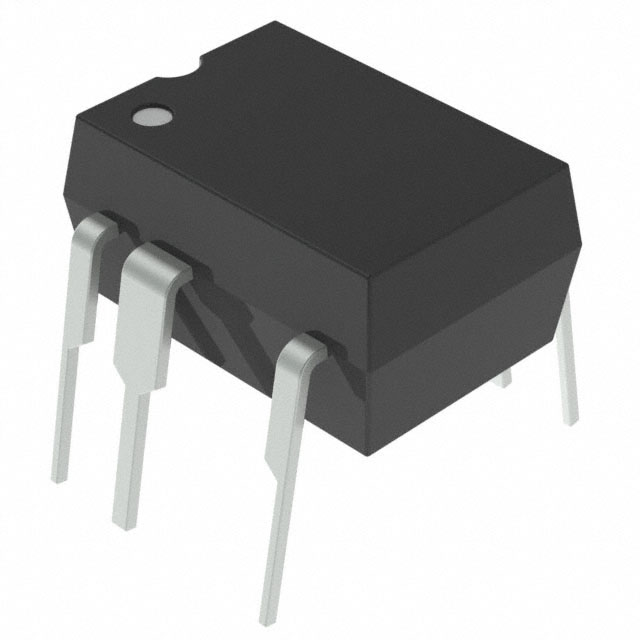

  • Package / Case8-DIP (0.300", 7.62mm), 7 Leads
  • Mounting TypeThrough Hole
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Duty Cycle69%
  • Frequency - Switching66kHz
  • Internal Switch(s)Yes
  • Voltage - Breakdown725V
  • Output IsolationNon-Isolated
  • TopologyBuck, Buck-Boost, Flyback
  • Voltage - Supply (Vcc/Vdd)85V ~ 265V
  • Supplier Device Package8-PDIP-C
  • Fault ProtectionCurrent Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO
  • Control FeaturesFrequency Control, Soft Start

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new LNK3209P from Power Integrations only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,543
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
