Quectel

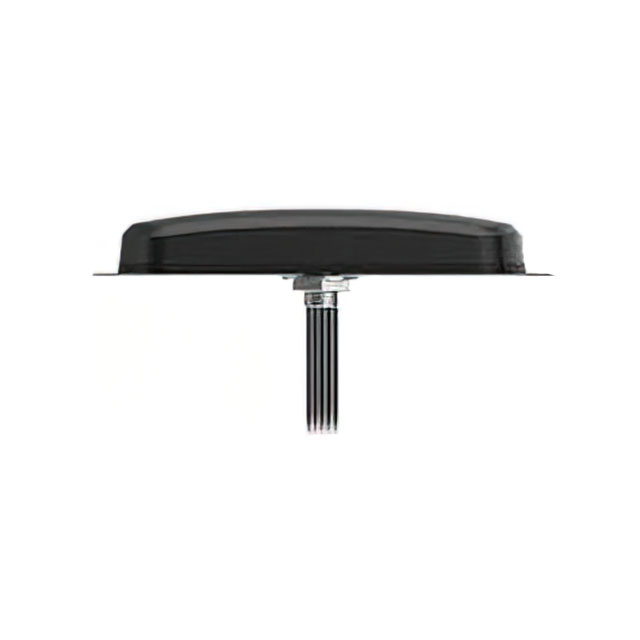

YEMN016AA
RF Antennas
5G COMBO ANTENNA
YEMN016AA Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerQuectel
CategoryRF Antennas
PackagesBulk
Standard Quantity100
Description650MHz, 755MHz, 890MHz, 1.47GHz, 1.935GHz, 2.35GHz, 2.45GHz, 2.595GHz, 3.75GHz, 4.7GHz, 5.5GHz 4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, HSPA+, LTE, WCDMA, Wi-Fi Dome RF Antenna 600MHz ~ 700MHz, 700MHz ~ 810MHz, 820MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.217GHz ~ 1.238GHz, 1.42GHz ~ 1.52GHz, 1.559GHz ~ 1.606GHz, 1.7GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz 0.2dBi, -1.2dBi, 1.3dBi, 1.8dBi, 1.9dBi, -2dBi, 4dBi, 4dBi, 4.1dBi, 4.1dBi, 4.9dBi, 5.1dBi, 5.3dBi SMA Male Screw
FeaturesCable - 300mm, LNA
Mounting TypeScrew
Frequency Range600MHz ~ 700MHz, 700MHz ~ 810MHz, 820MHz ~ 960MHz, 1.164GHz ~ 1.189GHz, 1.217GHz ~ 1.238GHz, 1.42GHz ~ 1.52GHz, 1.559GHz ~ 1.606GHz, 1.7GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz
Applications4G, 5G, BeiDou, Galileo, GLONASS, GNSS, GPRS, GPS, GSM, HSPA, HSPA+, LTE, WCDMA, Wi-Fi
Gain0.2dBi, -1.2dBi, 1.3dBi, 1.8dBi, 1.9dBi, -2dBi, 4dBi, 4dBi, 4.1dBi, 4.1dBi, 4.9dBi, 5.1dBi, 5.3dBi
TerminationSMA Male
Ingress ProtectionIP67, IP69K
Number of Bands14
VSWR2.7, 3.1, 8.4
Antenna TypeDome
Height (Max)1.220" (31.00mm)
Return Loss-2.1dB , -5.8dB , -6.8dB
Frequency GroupWide Band
Frequency (Center/Band)650MHz, 755MHz, 890MHz, 1.47GHz, 1.935GHz, 2.35GHz, 2.45GHz, 2.595GHz, 3.75GHz, 4.7GHz, 5.5GHz
RF Family/StandardCellular, Navigation, WiFi

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new YEMN016AA from Quectel only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.
