  • RIA Connect / METZ CONNECT

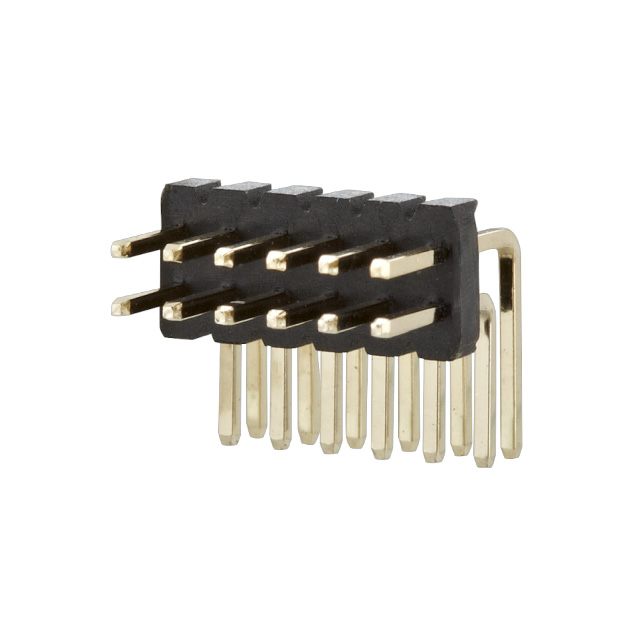

  • PR20B04HBDN
  • Headers, Male Pins
  • PIN HEADER, THR, DUAL ROW, 1.27
  •  PR20B04HBDN Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerRIA Connect / METZ CONNECT
  • CategoryHeaders, Male Pins
  • PackagesBox
  • Standard Quantity1000
  • DescriptionConnector Header Through Hole, Right Angle 8 position 0.050" (1.27mm)
  • Connector TypeHeader
  • Mounting TypeThrough Hole, Right Angle
  • Number of Positions8
  • Number of Rows2
  • StyleBoard to Board
  • Operating Temperature-40°C ~ 105°C
  • Contact TypeMale Pin
  • Fastening TypePush-Pull
  • Number of Positions LoadedAll
  • TerminationSolder
  • Contact MaterialCopper Alloy
  • Insulation ColorBlack
  • Pitch - Mating0.050" (1.27mm)
  • Contact Finish - MatingGold
  • Contact Finish Thickness - MatingFlash
  • Contact ShapeSquare
  • Contact Length - Post0.110" (2.79mm)
  • Insulation Height0.136" (3.46mm)
  • ShroudingUnshrouded
  • Insulation MaterialPolyethylene
  • Row Spacing - Mating0.050" (1.27mm)
  • Contact Length - Mating0.118" (3.00mm)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PR20B04HBDN from RIA Connect / METZ CONNECT only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,751
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
