  • Roving Networks (Microchip Technology)
  • JANTXV1N5809US
  • Discrete Semiconductor Products

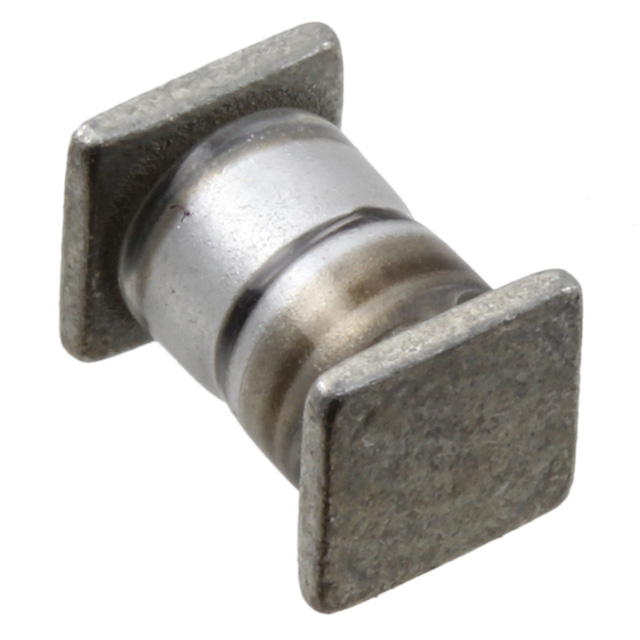

  • DIODE GEN PURP 100V 3A B SQ-MELF
  •  JANTXV1N5809US Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerRoving Networks (Microchip Technology)
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity1
  • DescriptionDiode 100 V 3A Surface Mount B, SQ-MELF
  • Package / CaseSQ-MELF, B
  • Mounting TypeSurface Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)30 ns
  • TechnologyStandard
  • Capacitance @ Vr, F60pF @ 10V, 1MHz
  • Current - Average Rectified (Io)3A
  • Supplier Device PackageB, SQ-MELF
  • Operating Temperature - Junction-65°C ~ 175°C
  • GradeMilitary
  • Voltage - DC Reverse (Vr) (Max)100 V
  • Voltage - Forward (Vf) (Max) @ If875 mV @ 4 A
  • Current - Reverse Leakage @ Vr5 µA @ 100 V
  • QualificationMIL-PRF-19500/477

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new JANTXV1N5809US from Roving Networks (Microchip Technology) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 208
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
