• Sanyo Semiconductor/onsemi

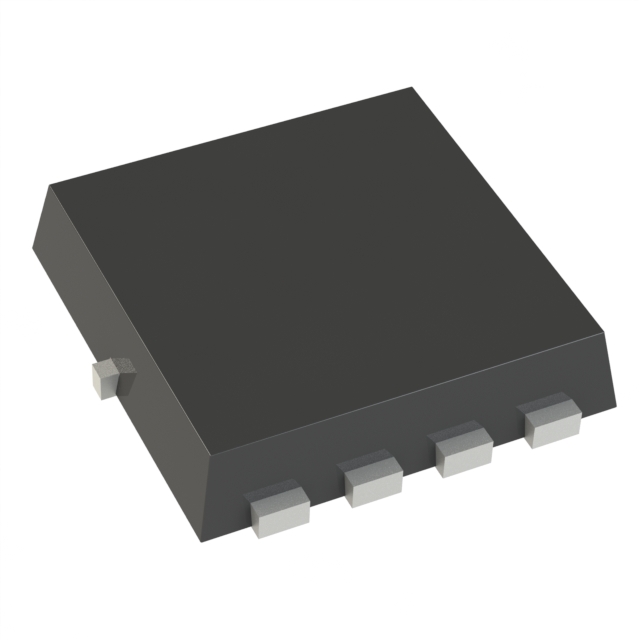

• FDMC7678
• Single FETs, MOSFETs
• MOSFET N-CH 30V 17.5A/19.5A 8MLP
•  FDMC7678 Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSanyo Semiconductor/onsemi
• CategorySingle FETs, MOSFETs
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionN-Channel 30 V 17.5A (Ta), 19.5A (Tc) 2.3W (Ta), 31W (Tc) Surface Mount 8-MLP (3.3x3.3)
• Package / Case8-PowerWDFN
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C17.5A (Ta), 19.5A (Tc)
• Rds On (Max) @ Id, Vgs5.3mOhm @ 17.5A, 10V
• Power Dissipation (Max)2.3W (Ta), 31W (Tc)
• Vgs(th) (Max) @ Id3V @ 250μA
• Supplier Device Package8-MLP (3.3x3.3)
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs39 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds2410 pF @ 15 V
