Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • Sanyo Semiconductor/onsemi

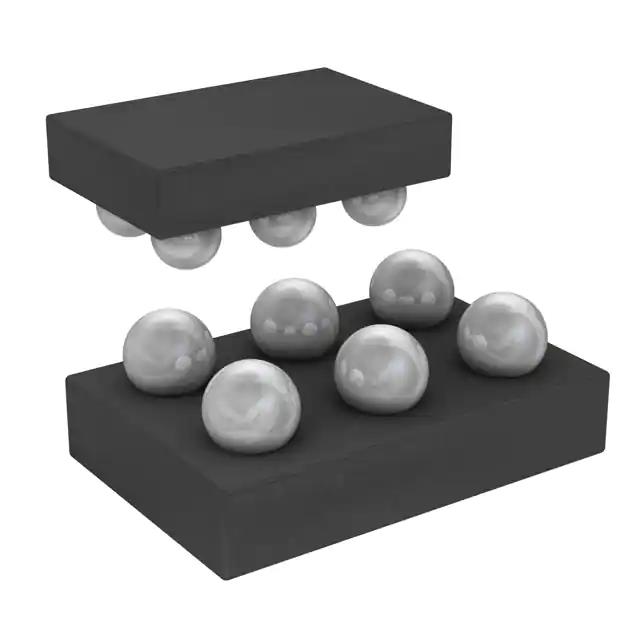

  • FDZ197PZ
  • Single FETs, MOSFETs
  • SMALL SIGNAL FIELD-EFFECT TRANSI
  •  FDZ197PZ Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategorySingle FETs, MOSFETs
  • PackagesBulk
  • Standard Quantity1211
  • DescriptionP-Channel 20 V 3.8A (Ta) 1.9W (Ta) Surface Mount 6-WLCSP (1.0x1.5)
  • Package / Case6-UFBGA, WLCSP
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeP-Channel
  • Current - Continuous Drain (Id) @ 25°C3.8A (Ta)
  • Rds On (Max) @ Id, Vgs64mOhm @ 2A, 4.5V
  • Power Dissipation (Max)1.9W (Ta)
  • Vgs(th) (Max) @ Id1V @ 250μA
  • Supplier Device Package6-WLCSP (1.0x1.5)
  • Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
  • Vgs (Max)±8V
  • Drain to Source Voltage (Vdss)20 V
  • Gate Charge (Qg) (Max) @ Vgs25 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds1570 pF @ 10 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FDZ197PZ from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 275,000
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1

MORECustomer Reviews
  • Ma***us
    Got the Goods today, thank you for your support.
  • An***ro
    Thank you very much for the good service.Order received.
  • Ba***rt
    We have the package, thank you for the parts.
  • Ro***en
    Thank you. not tested yet but it looks soundly
  • Si***on
    Entrega bastante rápida.Bien empaquetado

VIEW ALL

Hard-to-find Electronic Components Distributor
You May Also Be Interested in

Sanyo Semiconductor/onsemi

FDZ197PZ

In Stock: 275,000 | For reference only.
