Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategorySingle IGBTs
  • PackagesTube
  • Standard Quantity450

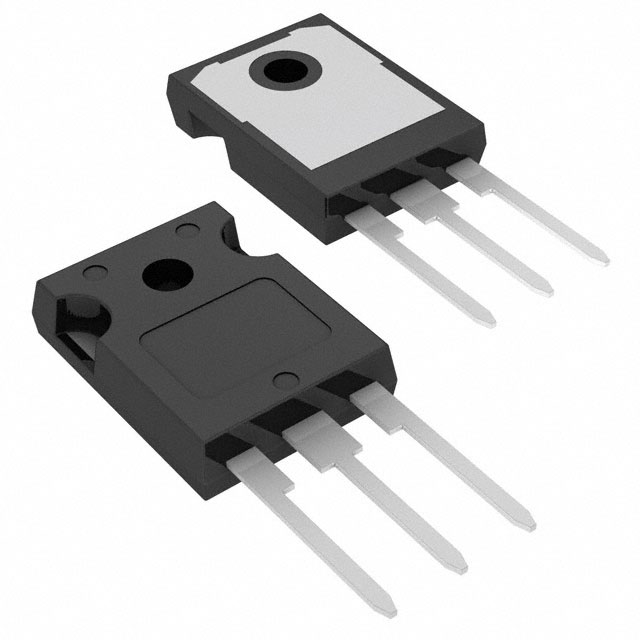

  • DescriptionIGBT NPT 1200 V 72 A 500 W Through Hole TO-247-3
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 27A
  • Supplier Device PackageTO-247-3
  • IGBT TypeNPT
  • Td (on/off) @ 25°C24ns/195ns
  • Switching Energy2.2mJ (on), 2.3mJ (off)
  • Test Condition960V, 27A, 3Ohm, 15V
  • Gate Charge270 nC
  • Current - Collector (Ic) (Max)72 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Current - Collector Pulsed (Icm)216 A
  • Power - Max500 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HGTG27N120BN from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.
