  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIGBT Modules
  • PackagesTray
  • Standard Quantity20

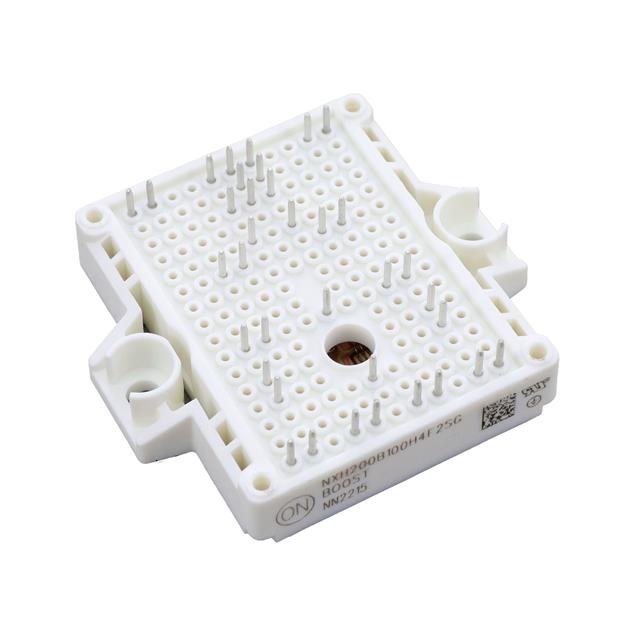

  • DescriptionIGBT Module Trench Field Stop Three Level Inverter 1000 V 100 A 93 W Chassis Mount 36-PIM (56.7x48)
  • Package / CaseModule
  • Mounting TypeChassis Mount
  • InputStandard
  • ConfigurationThree Level Inverter
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 100A
  • NTC ThermistorYes
  • Supplier Device Package36-PIM (56.7x48)
  • IGBT TypeTrench Field Stop
  • Current - Collector (Ic) (Max)100 A
  • Voltage - Collector Emitter Breakdown (Max)1000 V
  • Power - Max93 W
  • Current - Collector Cutoff (Max)200 μA
  • Input Capacitance (Cies) @ Vce6.523 nF @ 20 V
