Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIGBT Modules
  • PackagesTray
  • Standard Quantity24

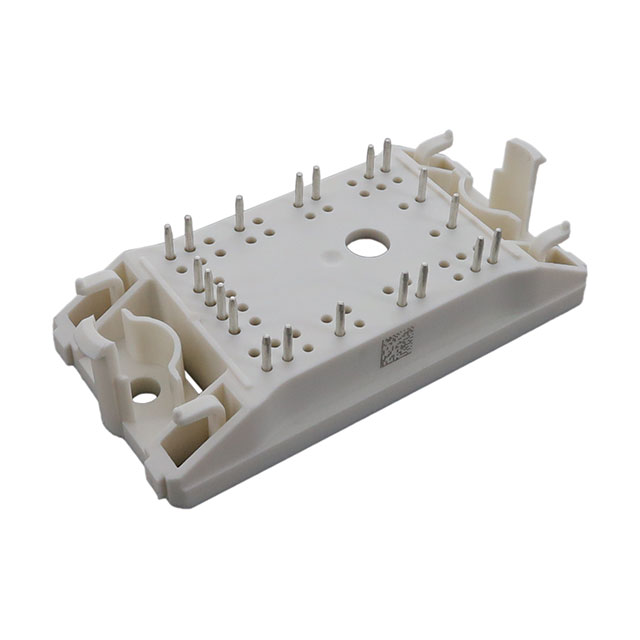

  • DescriptionIGBT Module Trench Field Stop Half Bridge 1200 V 75 A 188 W Chassis Mount 20-PIM/Q0PACK (55x32.5)
  • Package / CaseModule
  • Mounting TypeChassis Mount
  • InputStandard
  • ConfigurationHalf Bridge
  • Operating Temperature-40°C ~ 175°C (TJ)
  • Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 80A
  • NTC ThermistorYes
  • Supplier Device Package20-PIM/Q0PACK (55x32.5)
  • IGBT TypeTrench Field Stop
  • Current - Collector (Ic) (Max)75 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Power - Max188 W
  • Current - Collector Cutoff (Max)300 μA
  • Input Capacitance (Cies) @ Vce18.15 nF @ 20 V
