  • Sanyo Semiconductor/onsemi
  • HCPL0701R2
  • Isolators

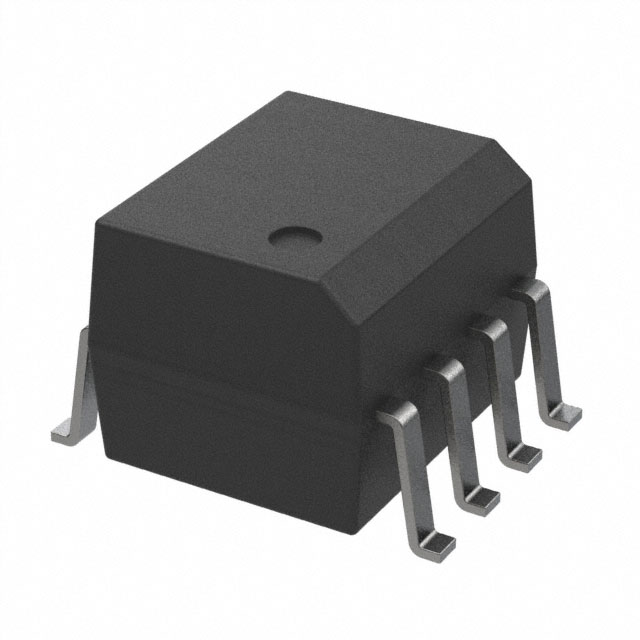

  • OPTOCOUPLER SGL DARL OUT 8-SOIC
  •  HCPL0701R2 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionOptoisolator Darlington with Base Output 2500Vrms 1 Channel 8-SOIC
  • Package / Case8-SOIC (0.154", 3.90mm Width)
  • Output TypeDarlington with Base
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Forward (Vf) (Typ)1.25V
  • Input TypeDC
  • Current - Output / Channel60mA
  • Voltage - Isolation2500Vrms
  • Current Transfer Ratio (Min)500% @ 1.6mA
  • Current Transfer Ratio (Max)2600% @ 1.6mA
  • Supplier Device Package8-SOIC
  • Voltage - Output (Max)18V
  • Turn On / Turn Off Time (Typ)300ns, 1.6µs
  • Number of Channels1
  • Current - DC Forward (If) (Max)20 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HCPL0701R2 from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,315
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
