• Sanyo Semiconductor/onsemi
• NTD4813N-1G
• Discrete Semiconductor Products
• MOSFET N-CH 30V 7.6A/40A IPAK
•  NTD4813N-1G Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSanyo Semiconductor/onsemi
• CategoryDiscrete Semiconductor Products
• PackagesTube
• Standard Quantity75
• DescriptionN-Channel 30 V 7.6A (Ta), 40A (Tc) 1.27W (Ta), 35.3W (Tc) Through Hole IPAK

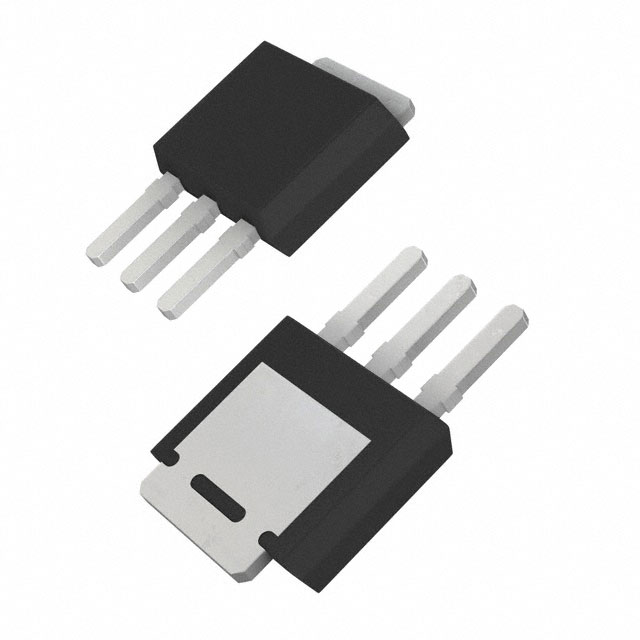

• Package / CaseTO-251-3 Short Leads, IPAK, TO-251AA
• Mounting TypeThrough Hole
• Operating Temperature-55°C ~ 175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C7.6A (Ta), 40A (Tc)
• Rds On (Max) @ Id, Vgs13mOhm @ 30A, 10V
• Power Dissipation (Max)1.27W (Ta), 35.3W (Tc)
• Vgs(th) (Max) @ Id2.5V @ 250µA
• Supplier Device PackageIPAK
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 11.5V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs7.9 nC @ 4.5 V
• Input Capacitance (Ciss) (Max) @ Vds860 pF @ 12 V
