  • Sanyo Semiconductor/onsemi

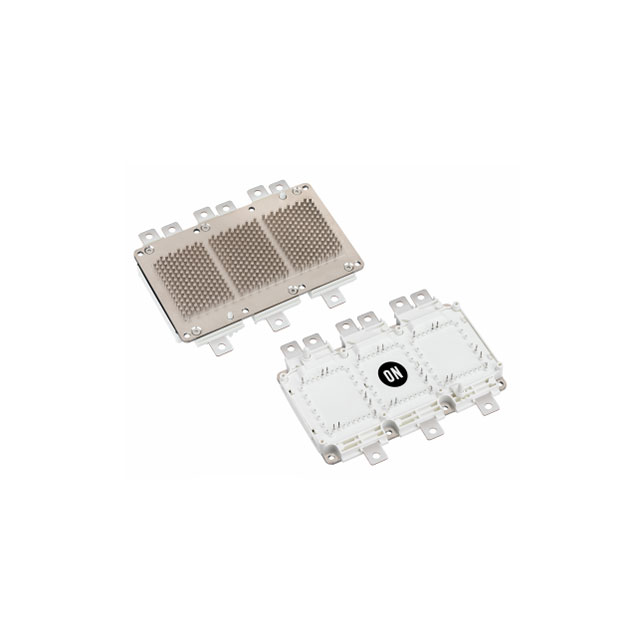

  • NVH950S75L4SPB
  • Discrete Semiconductor Products
  • AUTOMOTIVE 750V, 950A SSDC POWER
  •  NVH950S75L4SPB Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesBulk
  • Standard Quantity4
  • DescriptionIGBT Module Trench Field Stop Three Phase Inverter 750 V 950 A 1300 W Chassis Mount SSDC33
  • Package / CaseModule
  • Mounting TypeChassis Mount
  • InputStandard
  • ConfigurationThree Phase Inverter
  • Operating Temperature-40°C ~ 175°C (TJ)
  • Vce(on) (Max) @ Vge, Ic1.55V @ 15V, 600A
  • NTC ThermistorYes
  • Supplier Device PackageSSDC33
  • IGBT TypeTrench Field Stop
  • Current - Collector (Ic) (Max)950 A
  • Voltage - Collector Emitter Breakdown (Max)750 V
  • Power - Max1300 W
  • Current - Collector Cutoff (Max)500 µA
  • Input Capacitance (Cies) @ Vce60000 pF @ 30 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NVH950S75L4SPB from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
